正常人 Beta ITPC 全通道條件腦拓圖

ASR10 + FIR 0.5-50 Hz + ICA 後切割資料；用與 Mu ITPC 頁相同方式整理 low beta 與 high beta。

Low betaHigh beta下載設定 JSON

Low Beta ITPC 13-20 Hz

13-20 Hz ITPC；每位正常受試者分別畫左腳、右腳、Rest 與三種差值。

色盤使用 jet。條件圖色階固定：0.000 到 0.120；差值圖色階固定：-0.037 到 0.037。

下載 channel map CSV 下載 C3/C4 summary CSV 下載 C3/C4 subject CSV

組平均

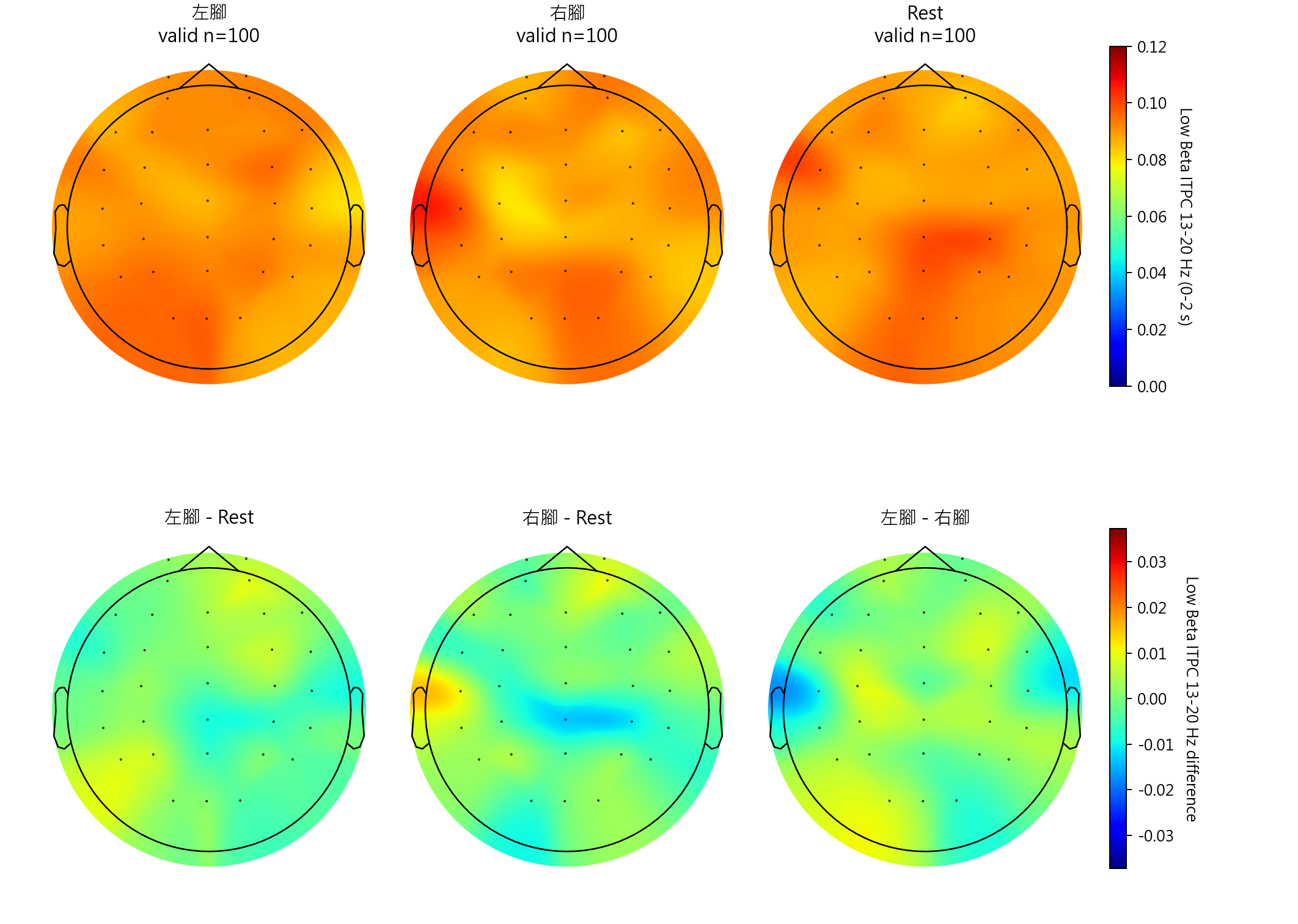

Low Beta ITPC 13-20 Hz group mean topomaps

C3/C4 跨受試者分布

每個點是一位正常受試者；大點與誤差棒為平均值 ± SEM。

左腳、右腳、Rest

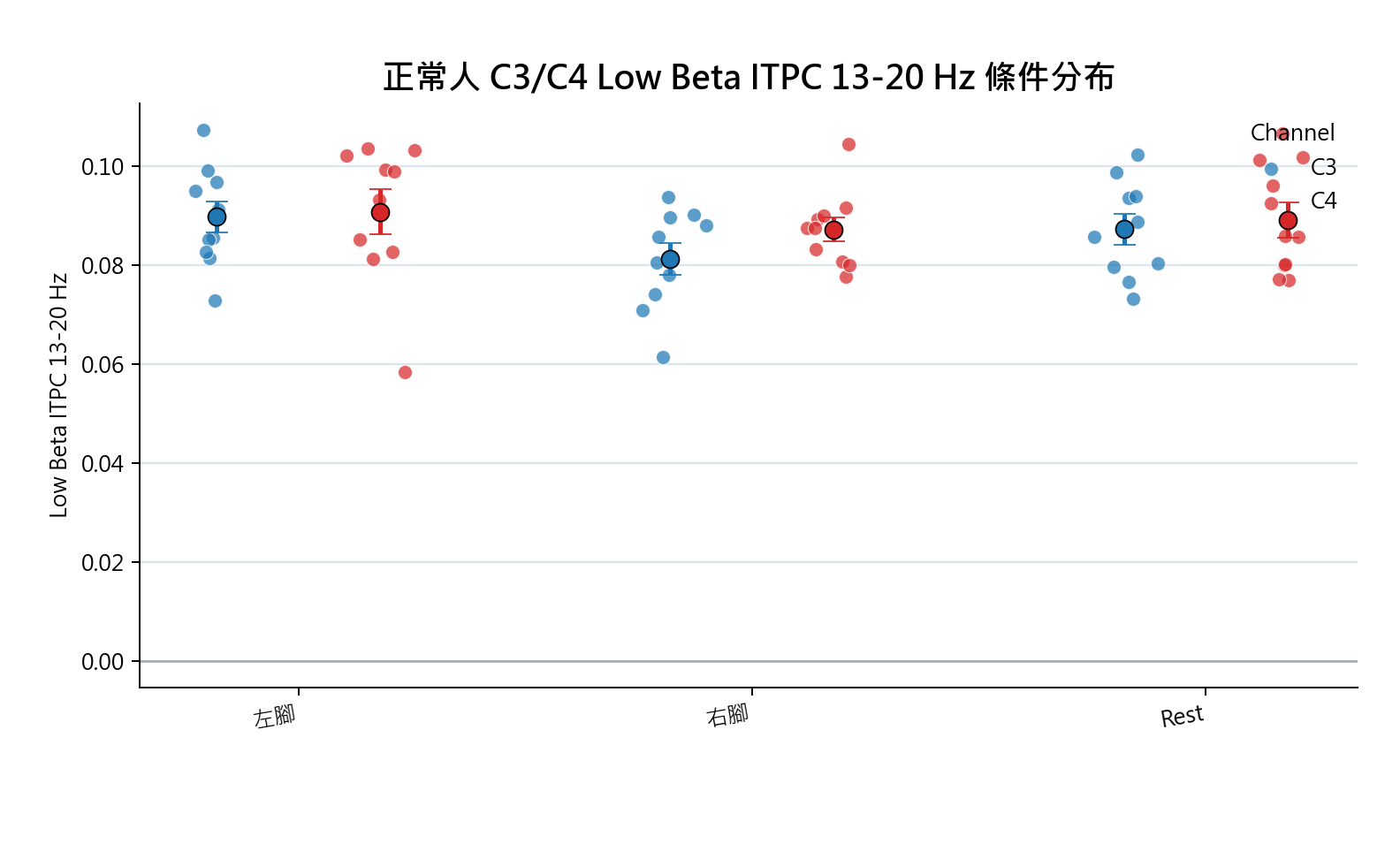

Low Beta ITPC 13-20 Hz condition C3 C4 scatter

左腳-Rest、右腳-Rest、左腳-右腳

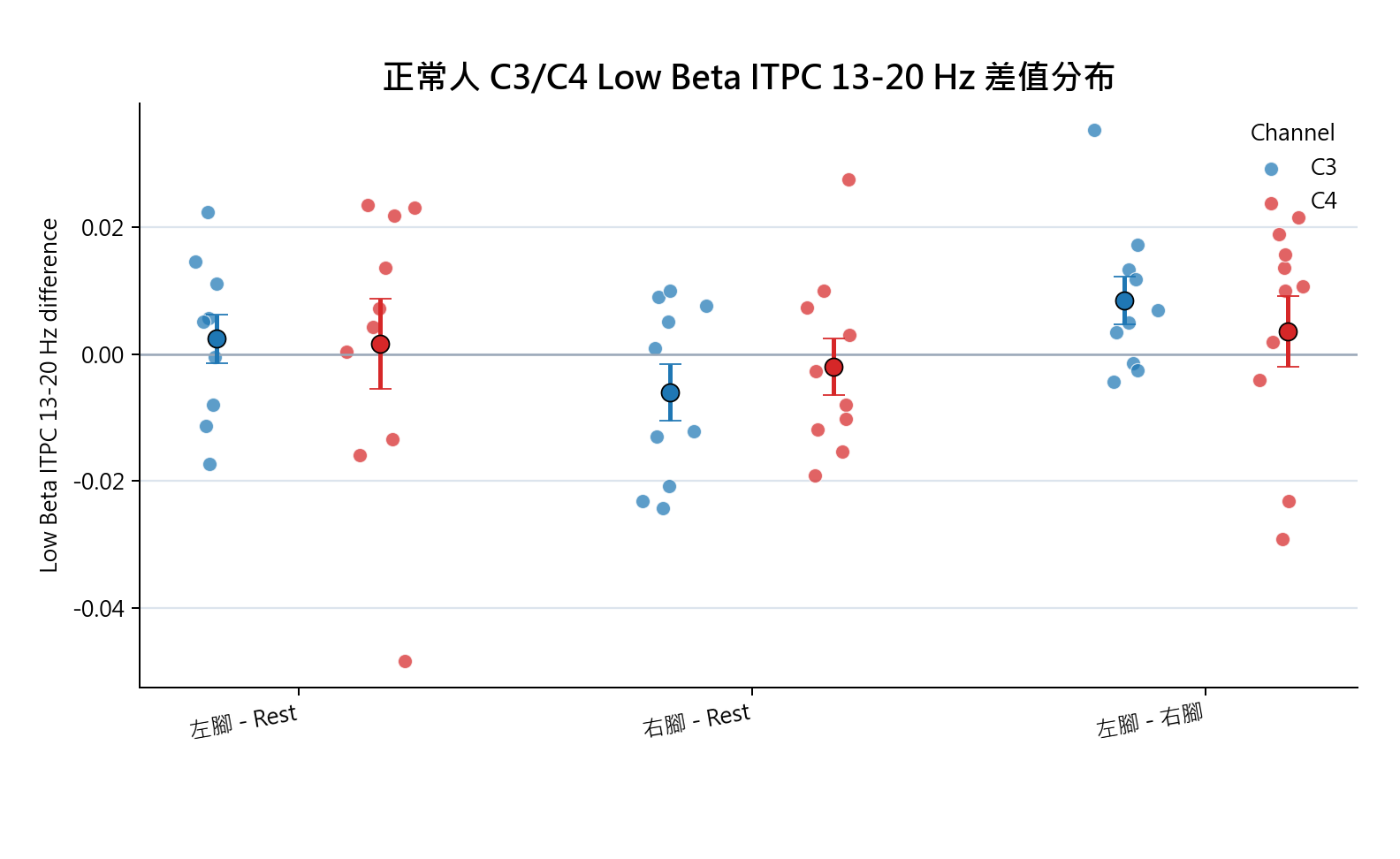

Low Beta ITPC 13-20 Hz difference C3 C4 scatter

六種資料平均值與標準差

資料C3 meanC3 SDC4 meanC4 SDC3-C4 meanC3-C4 SD
左腳0.08970.01010.09070.0143-0.00110.0221
右腳0.08120.01020.08720.0077-0.00600.0151
Rest0.08720.00980.08910.0113-0.00190.0119
左腳 - Rest0.00240.01220.00160.02250.00080.0272
右腳 - Rest-0.00600.0140-0.00190.0141-0.00410.0206
左腳 - 右腳0.00850.01180.00360.01750.00490.0239

單一受試者 C3/C4 摘要

sub左腳 C3左腳 C4左腳 C3-C4右腳 C3右腳 C4右腳 C3-C4
sub10.09900.0993-0.00030.08570.07770.0080
sub100.08550.08130.00430.08050.1044-0.0239
sub110.09680.08520.01160.06140.0893-0.0279
sub120.08150.1021-0.02070.07800.0915-0.0135
sub130.07270.1035-0.03070.07410.0899-0.0158
sub140.08520.08260.00250.08960.08070.0088
sub150.08260.1031-0.02050.07080.0874-0.0166
sub20.09120.0989-0.00770.09380.08000.0138
sub30.09500.09320.00190.08810.08320.0049
sub90.10730.05830.04910.09010.08750.0026
mean0.08970.0907-0.00110.08120.0872-0.0060

sub1

sub1 - 30y male (Lofan)

有效 trial / 全部 trial：左腳: 99/100 / 右腳: 103/103 / Rest: 100/100

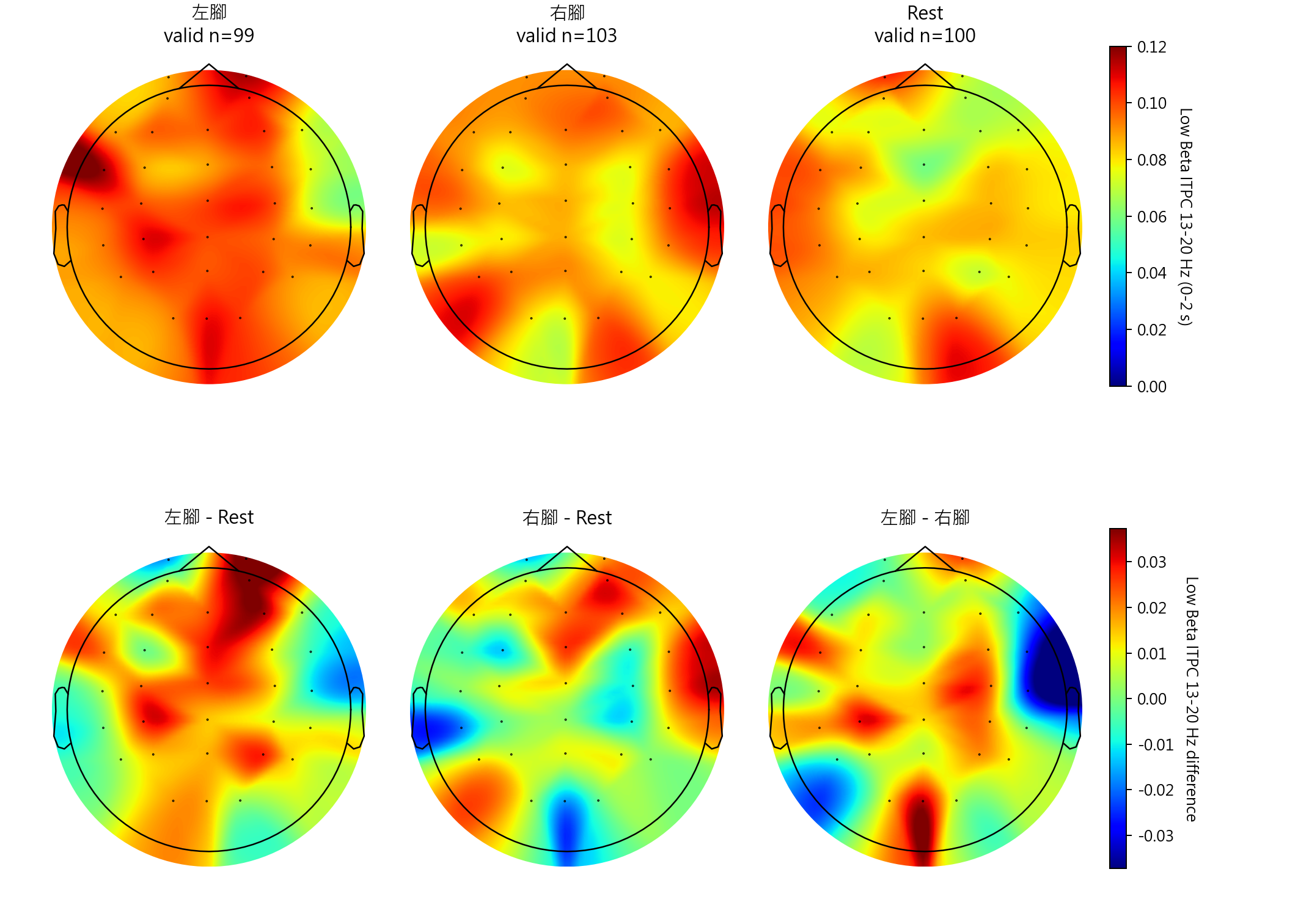

sub1 Low Beta ITPC 13-20 Hz topomaps

sub10

sub10 - 20y male (李耀凱)

有效 trial / 全部 trial：左腳: 100/100 / 右腳: 100/100 / Rest: 101/101

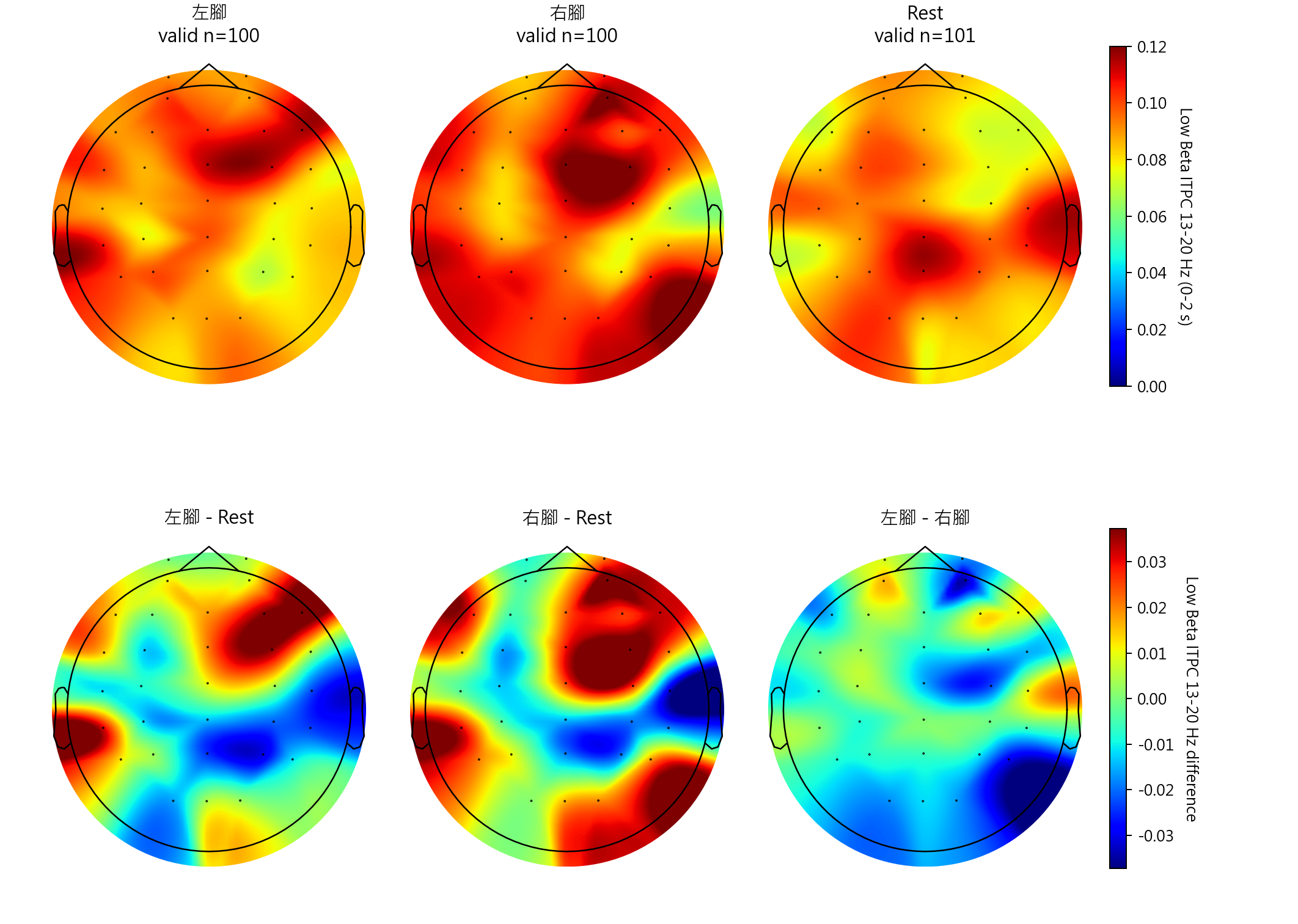

sub10 Low Beta ITPC 13-20 Hz topomaps

sub11

sub11 - 25y female (游郁慈)

有效 trial / 全部 trial：左腳: 100/100 / 右腳: 100/100 / Rest: 100/100

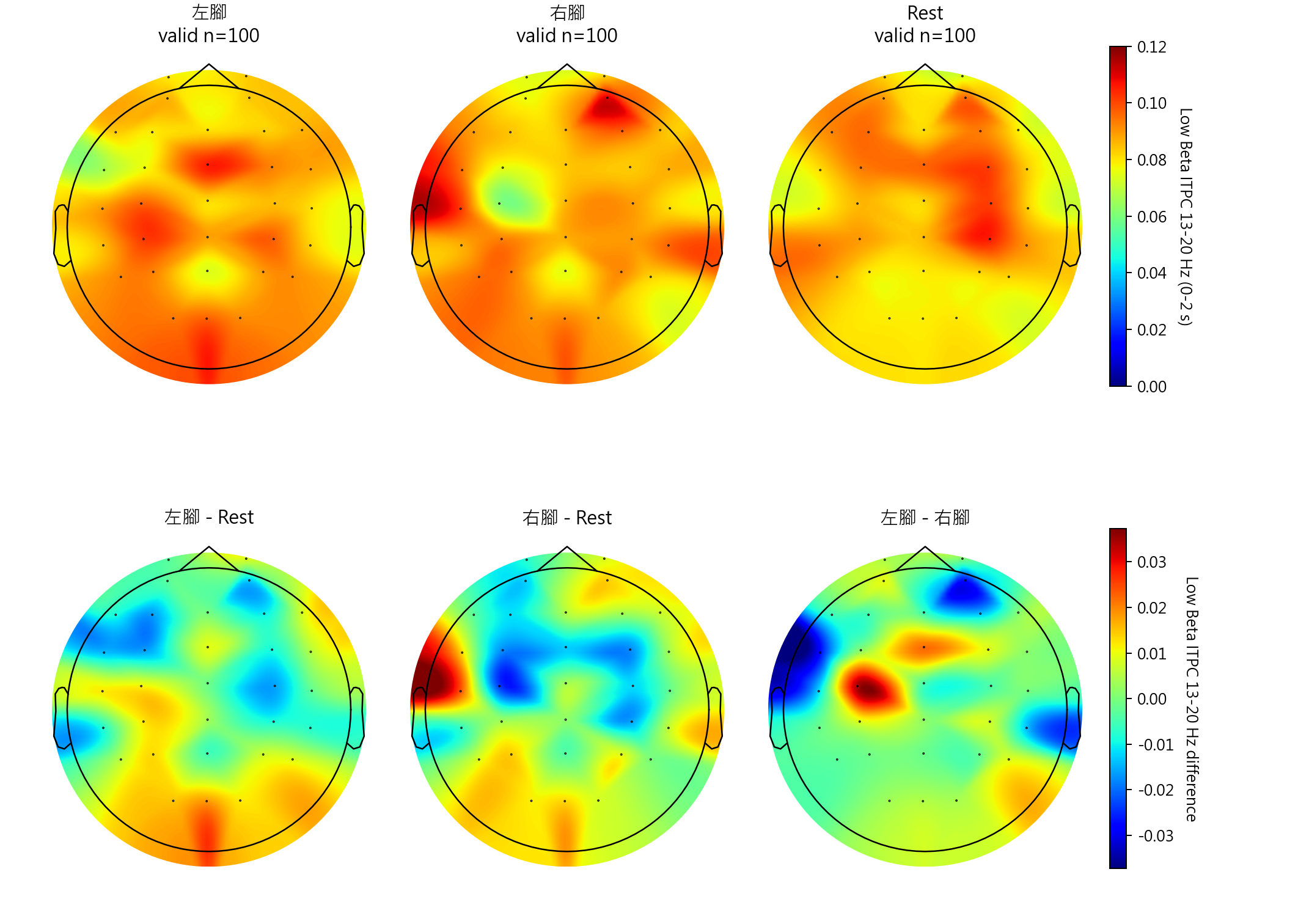

sub11 Low Beta ITPC 13-20 Hz topomaps

sub12

sub12 - 24y male (林子競)

有效 trial / 全部 trial：左腳: 100/100 / 右腳: 101/101 / Rest: 98/100

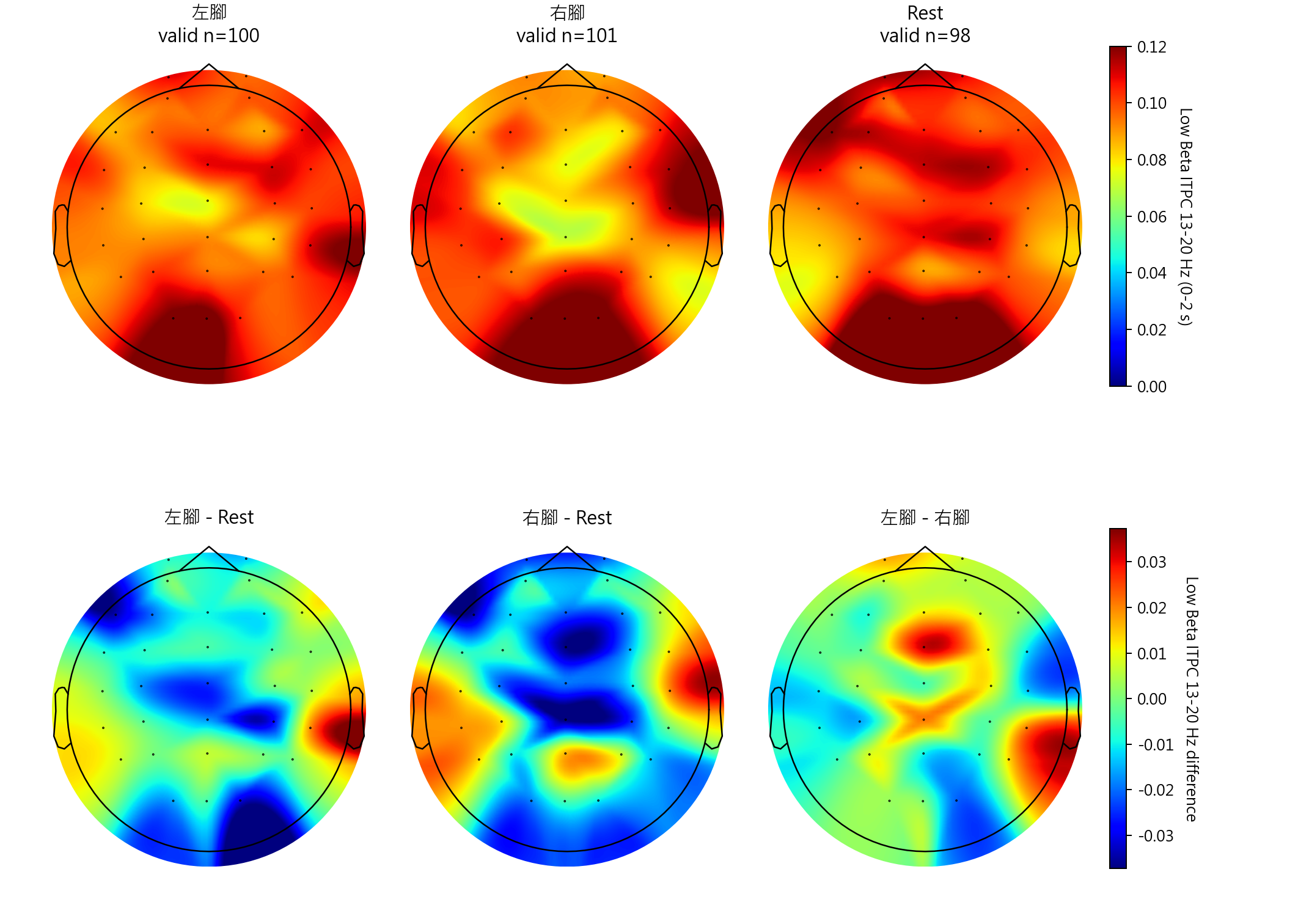

sub12 Low Beta ITPC 13-20 Hz topomaps

sub13

sub13 - 22y female (陳姿穎)

有效 trial / 全部 trial：左腳: 100/100 / 右腳: 99/100 / Rest: 100/100

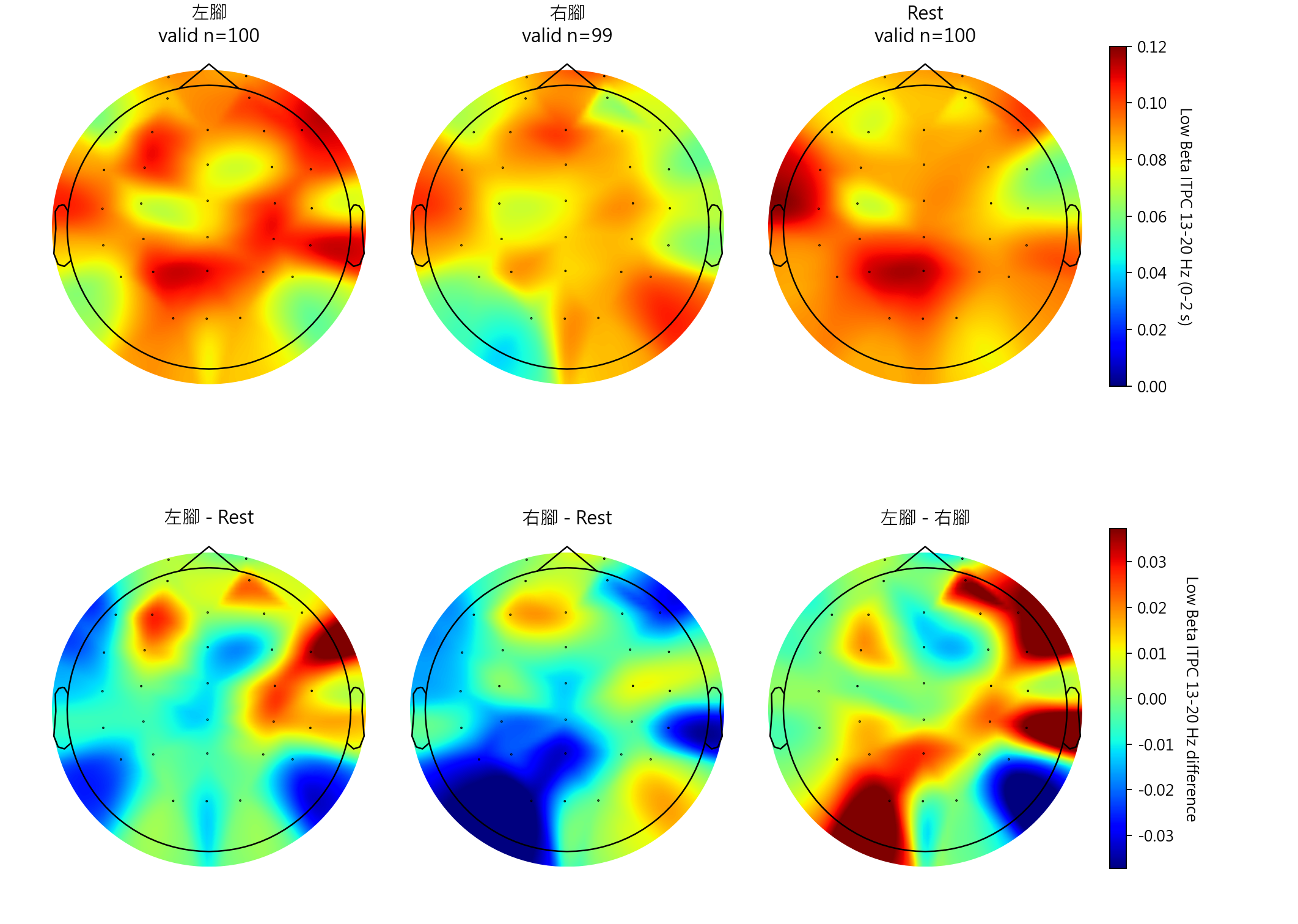

sub13 Low Beta ITPC 13-20 Hz topomaps

sub14

sub14 - 20y female (鍾沂蓁)

有效 trial / 全部 trial：左腳: 100/100 / 右腳: 100/100 / Rest: 101/101

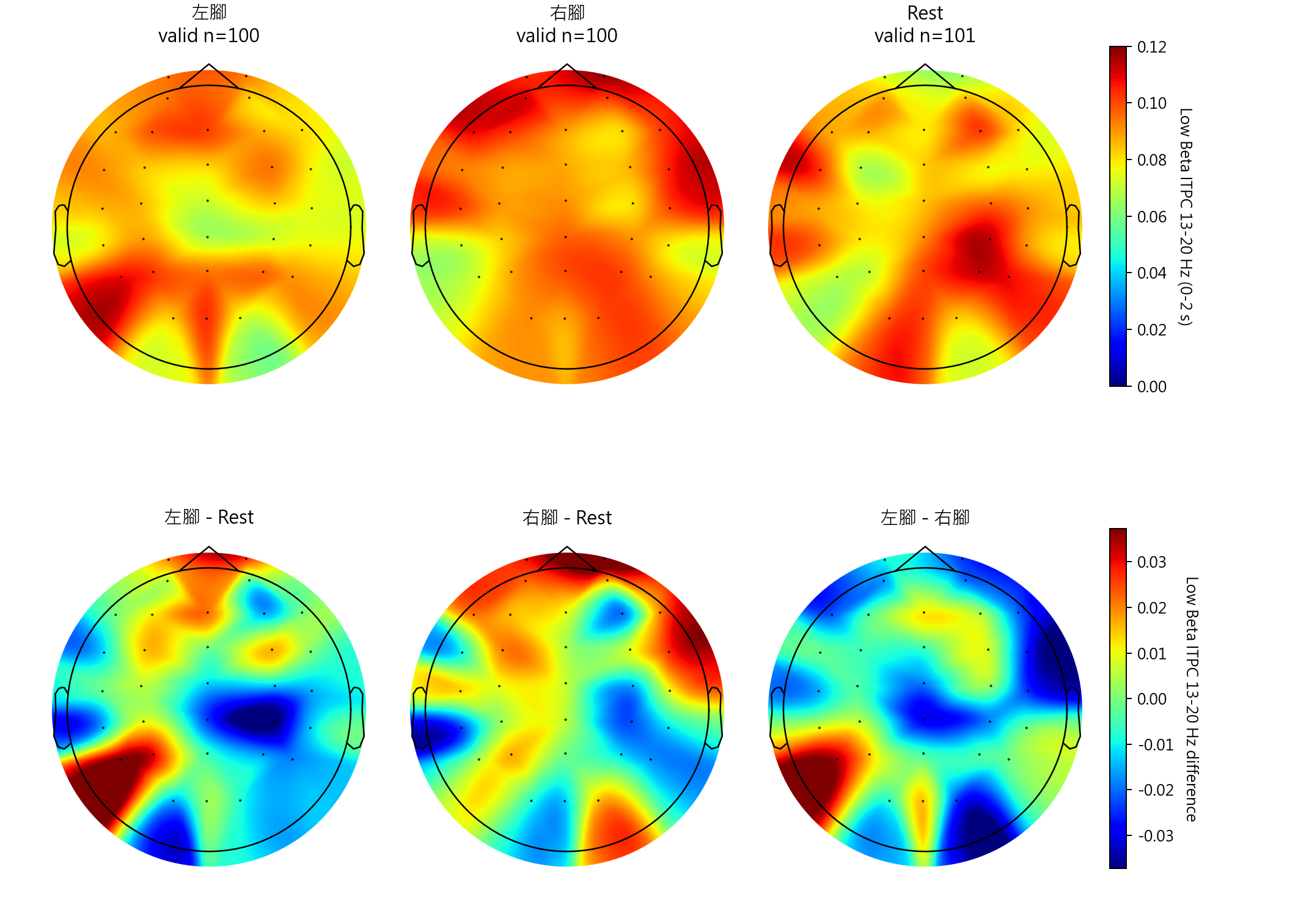

sub14 Low Beta ITPC 13-20 Hz topomaps

sub15

sub15 - 20y female (呂佳蓁)

有效 trial / 全部 trial：左腳: 100/100 / 右腳: 100/101 / Rest: 100/100

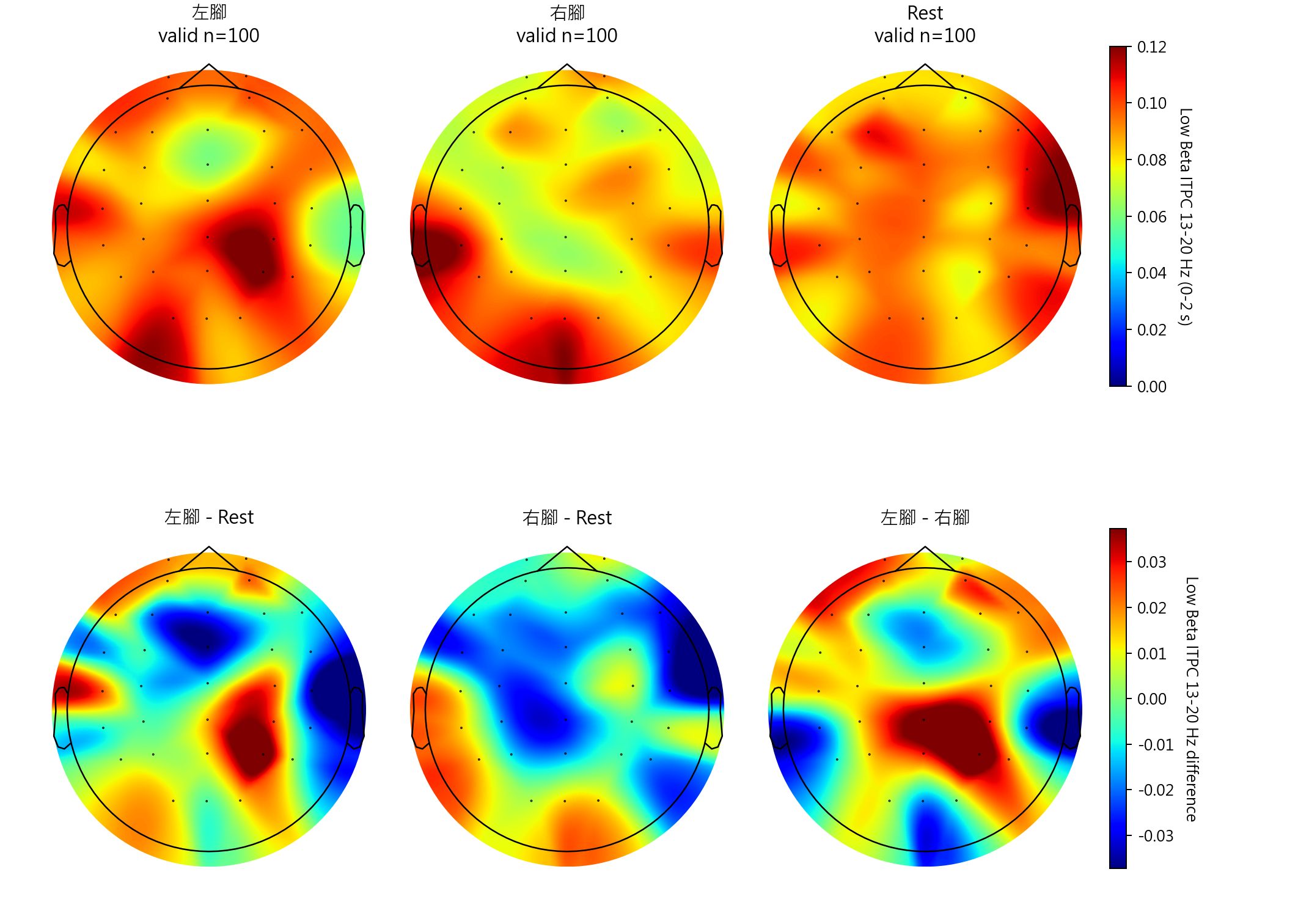

sub15 Low Beta ITPC 13-20 Hz topomaps

sub2

sub2 - 29y male (Sean)

有效 trial / 全部 trial：左腳: 102/102 / 右腳: 100/101 / Rest: 100/100

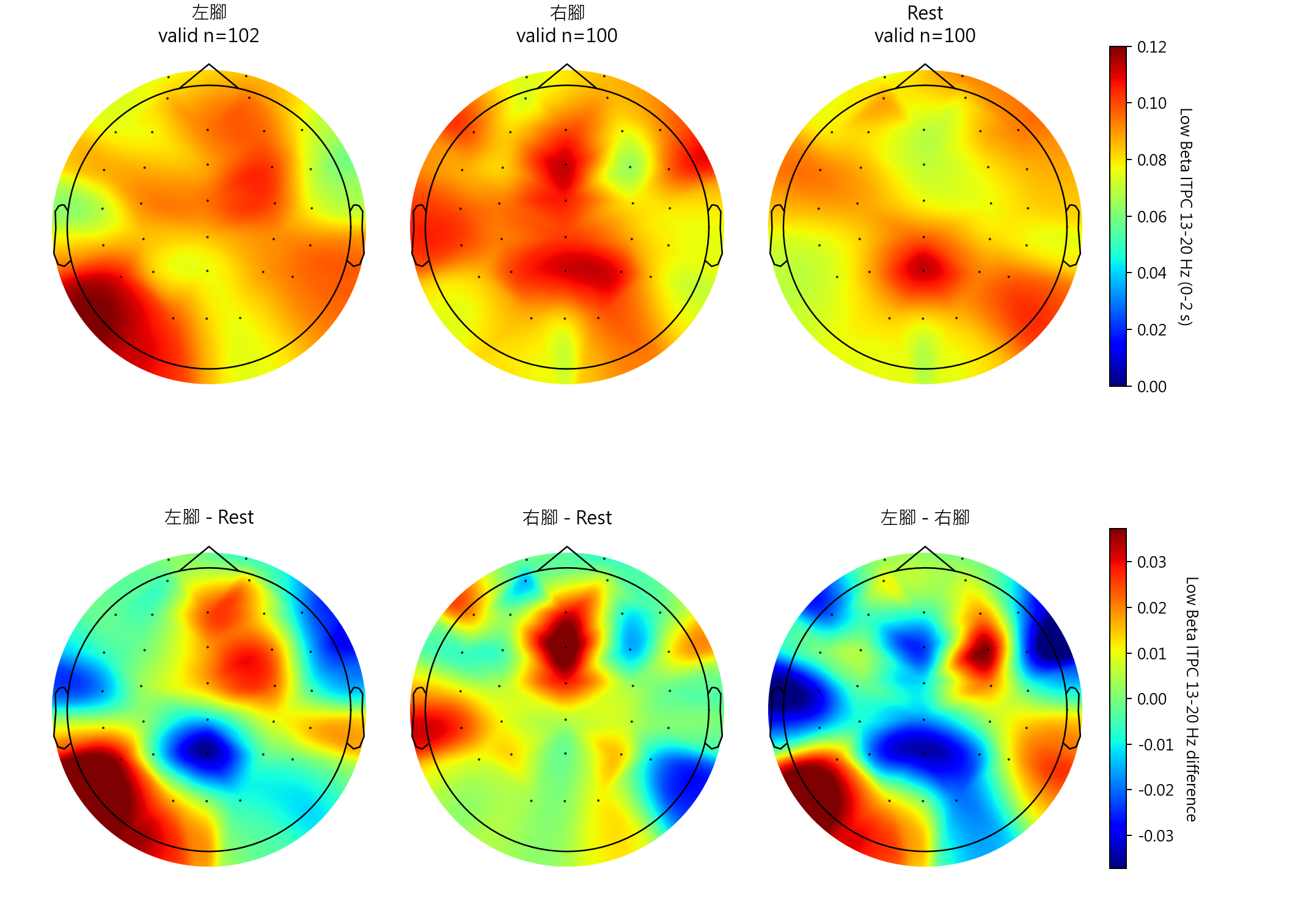

sub2 Low Beta ITPC 13-20 Hz topomaps

sub3

sub3 - 29y female (Janice)

有效 trial / 全部 trial：左腳: 100/100 / 右腳: 100/100 / Rest: 100/100

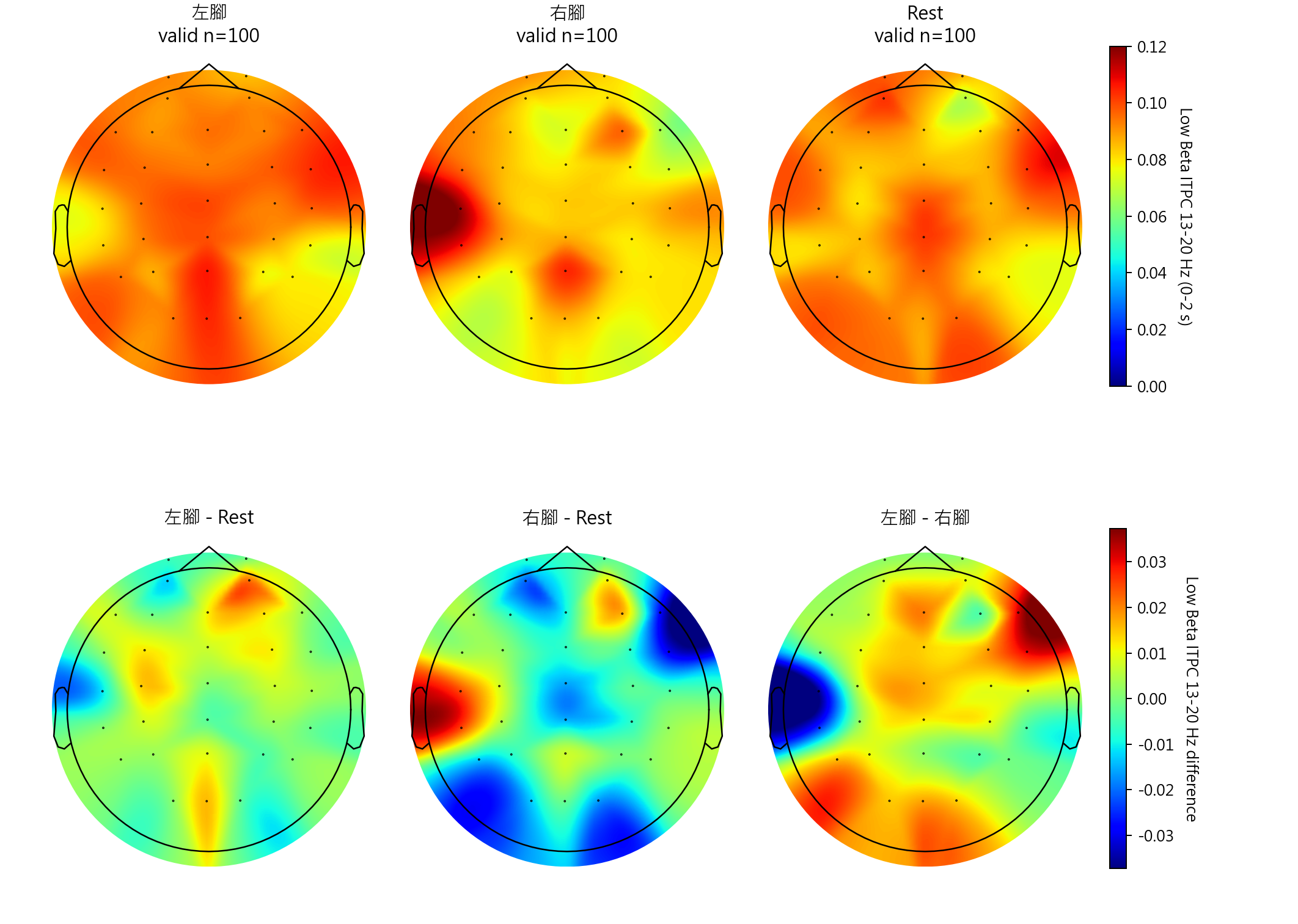

sub3 Low Beta ITPC 13-20 Hz topomaps

sub9

sub9 - 23y female (潘俐伃)

有效 trial / 全部 trial：左腳: 100/100 / 右腳: 100/101 / Rest: 100/100

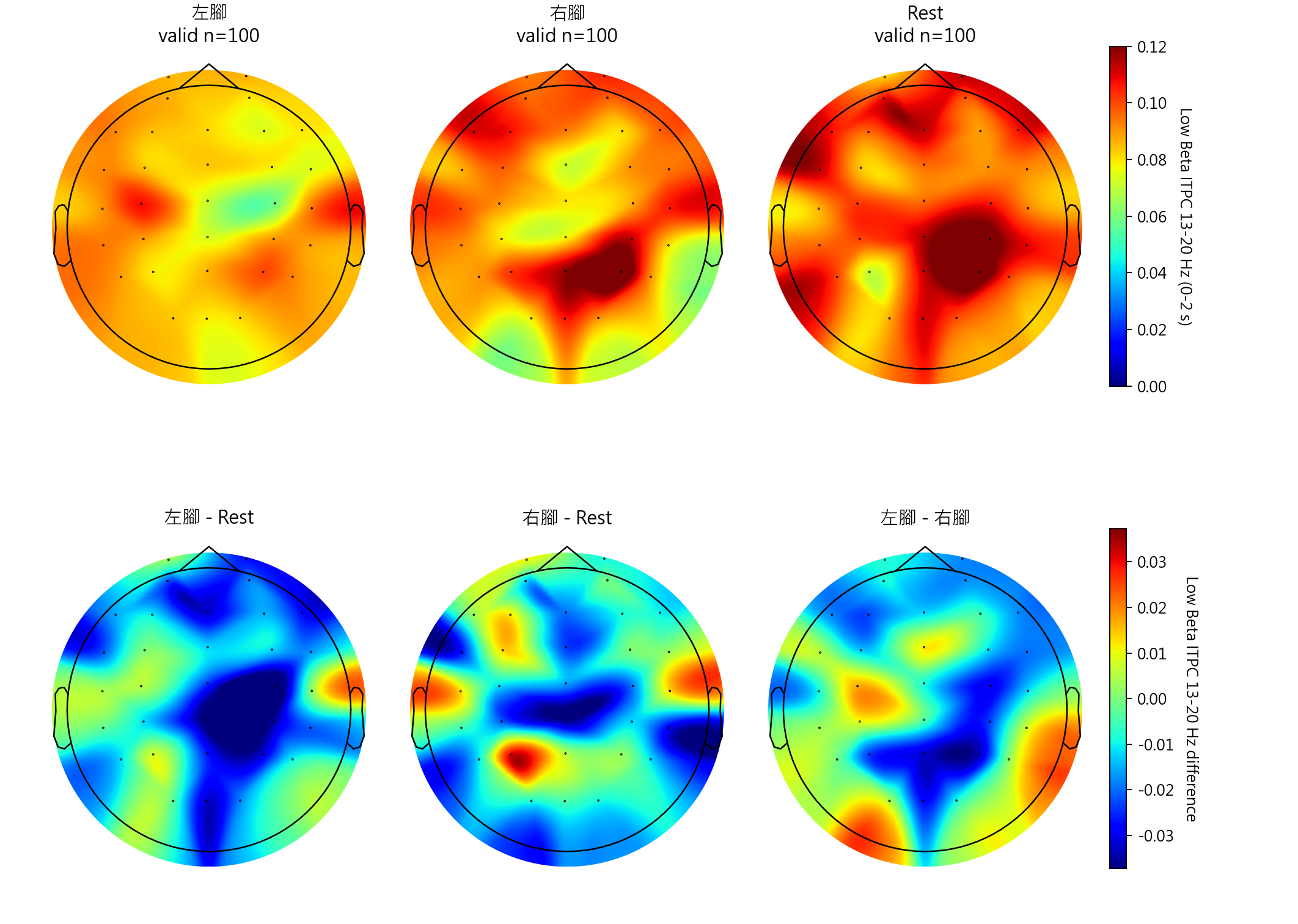

sub9 Low Beta ITPC 13-20 Hz topomaps

High Beta ITPC 20-30 Hz

20-30 Hz ITPC；每位正常受試者分別畫左腳、右腳、Rest 與三種差值。

色盤使用 jet。條件圖色階固定：0.000 到 0.120；差值圖色階固定：-0.030 到 0.030。

下載 channel map CSV 下載 C3/C4 summary CSV 下載 C3/C4 subject CSV

組平均

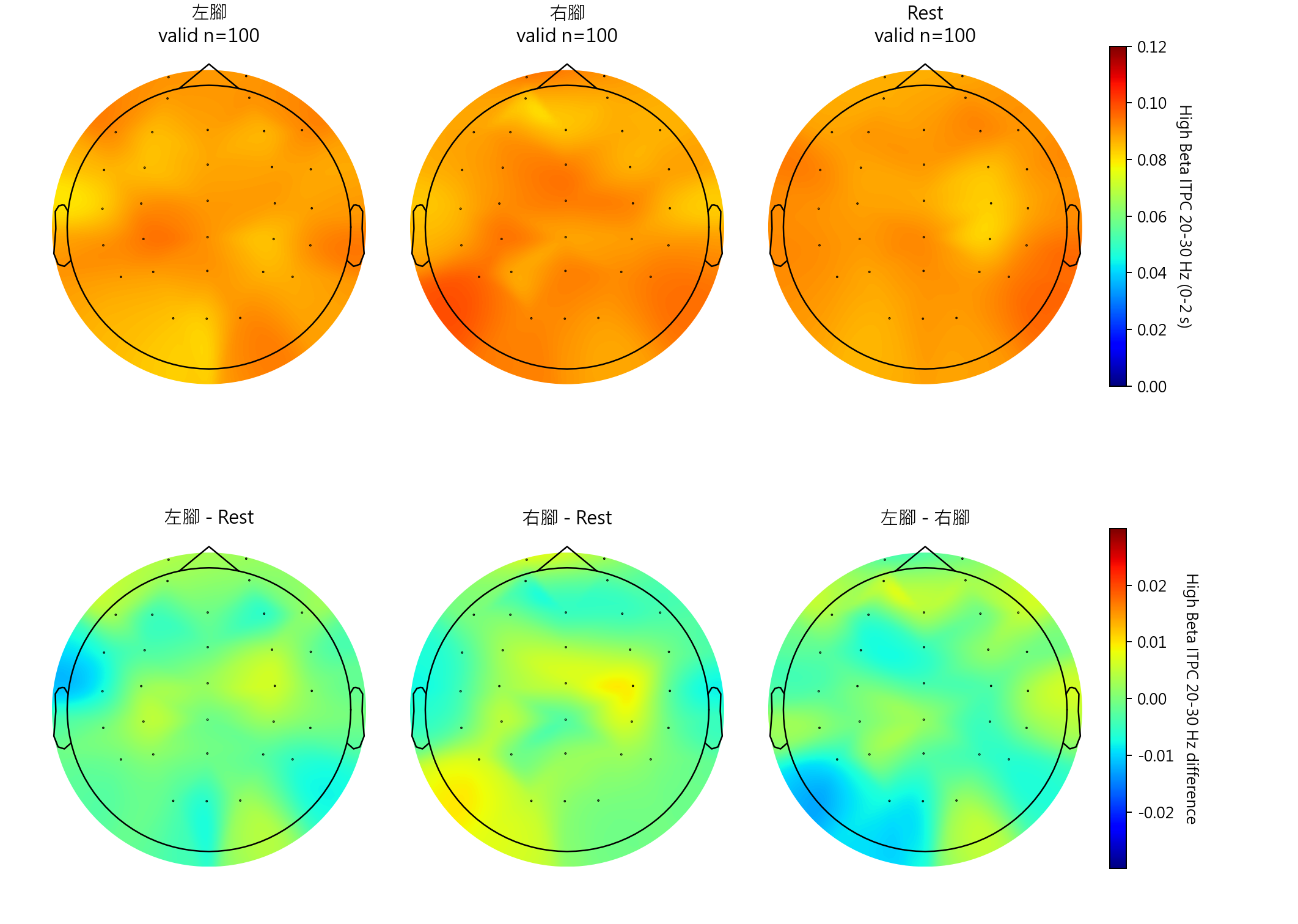

High Beta ITPC 20-30 Hz group mean topomaps

C3/C4 跨受試者分布

每個點是一位正常受試者；大點與誤差棒為平均值 ± SEM。

左腳、右腳、Rest

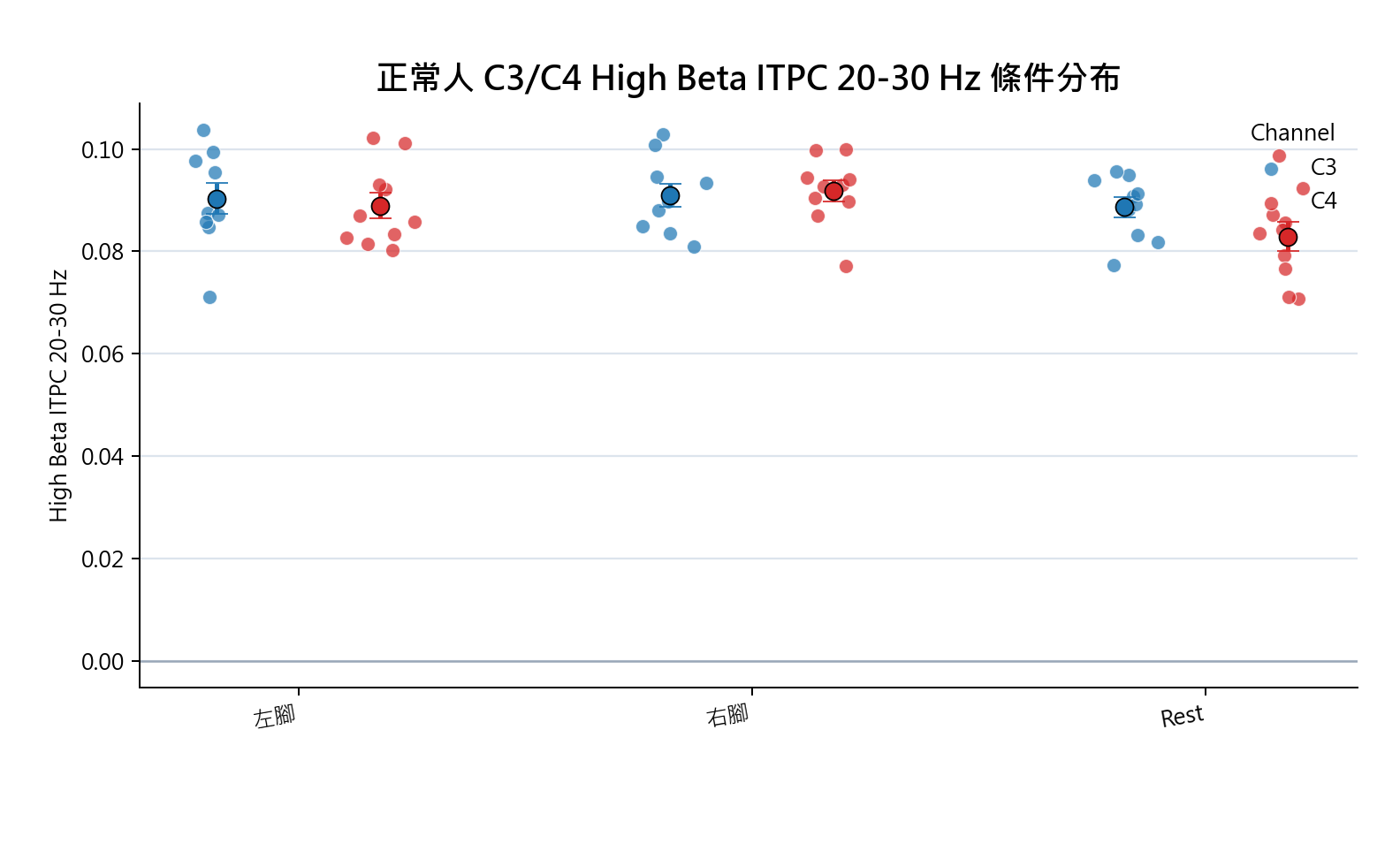

High Beta ITPC 20-30 Hz condition C3 C4 scatter

左腳-Rest、右腳-Rest、左腳-右腳

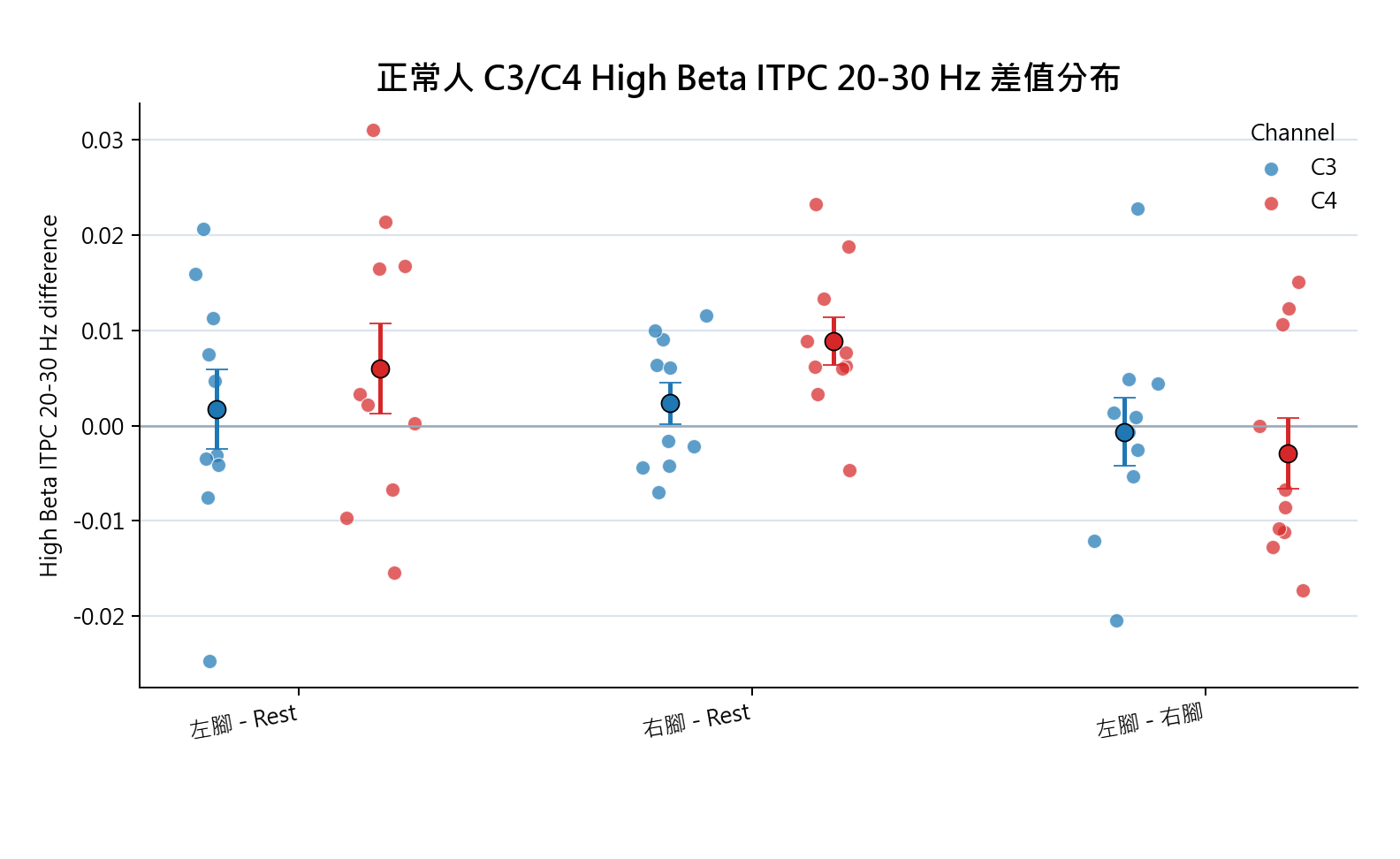

High Beta ITPC 20-30 Hz difference C3 C4 scatter

六種資料平均值與標準差

資料C3 meanC3 SDC4 meanC4 SDC3-C4 meanC3-C4 SD
左腳0.09030.00940.08890.00790.00150.0068
右腳0.09100.00710.09180.0066-0.00080.0098
Rest0.08860.00610.08290.00890.00570.0105
左腳 - Rest0.00170.01320.00600.0150-0.00430.0137
右腳 - Rest0.00240.00690.00890.0079-0.00650.0073
左腳 - 右腳-0.00070.0114-0.00290.01170.00230.0109

單一受試者 C3/C4 摘要

sub左腳 C3左腳 C4左腳 C3-C4右腳 C3右腳 C4右腳 C3-C4
sub10.08740.0922-0.00480.08800.07710.0110
sub100.09940.1021-0.00270.09450.08980.0047
sub110.09070.08690.00390.10280.08690.0159
sub120.07100.0826-0.01160.09140.0999-0.0084
sub130.09540.08140.01400.10080.09260.0082
sub140.08480.08030.00450.08340.0930-0.0096
sub150.08580.0858-0.00010.08490.0944-0.0095
sub20.08710.08330.00390.08970.0941-0.0044
sub30.09780.09300.00470.09330.0997-0.0064
sub90.10380.10110.00270.08100.0904-0.0094
mean0.09030.08890.00150.09100.0918-0.0008

sub1

sub1 - 30y male (Lofan)

有效 trial / 全部 trial：左腳: 99/100 / 右腳: 103/103 / Rest: 100/100

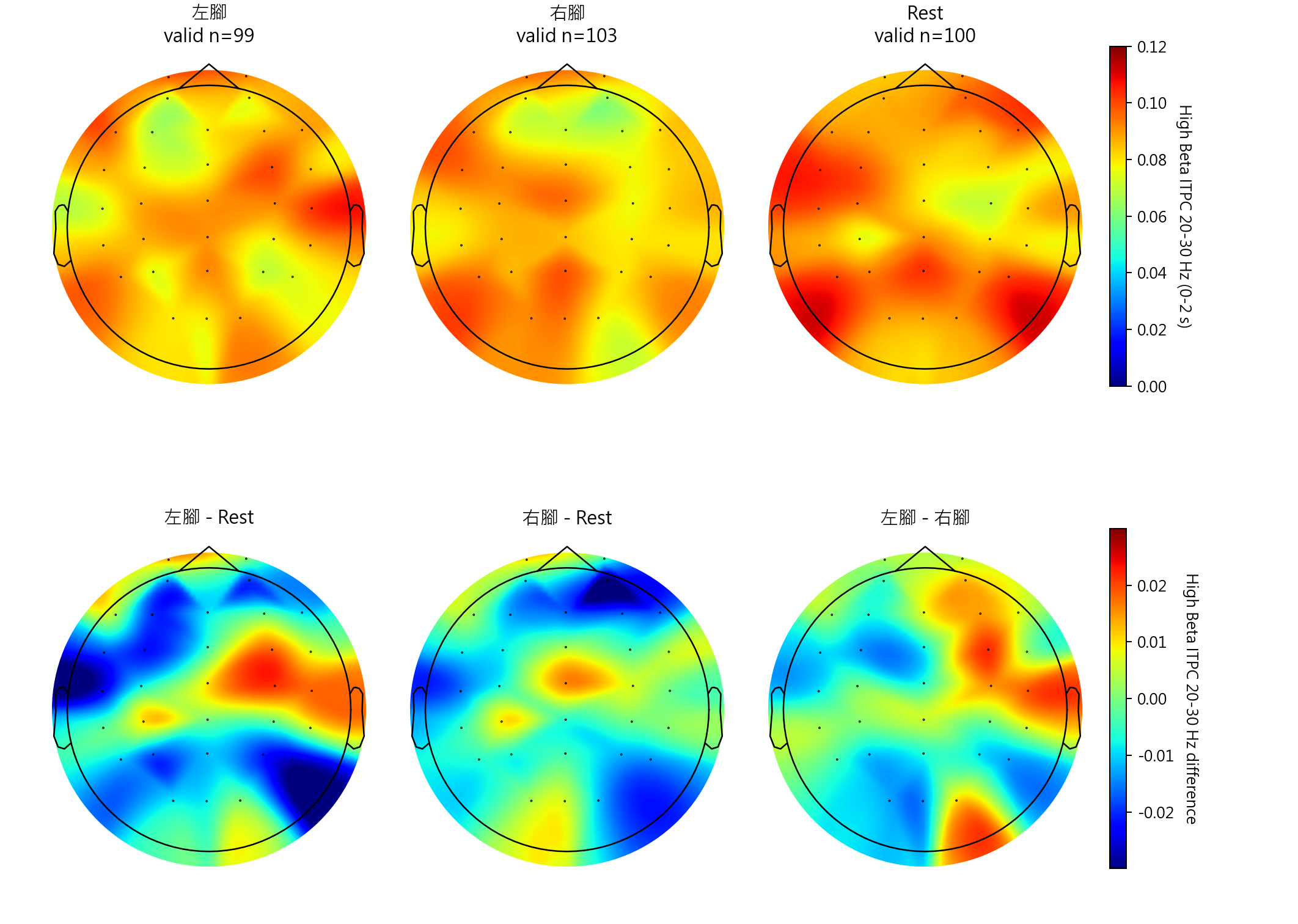

sub1 High Beta ITPC 20-30 Hz topomaps

sub10

sub10 - 20y male (李耀凱)

有效 trial / 全部 trial：左腳: 100/100 / 右腳: 100/100 / Rest: 101/101

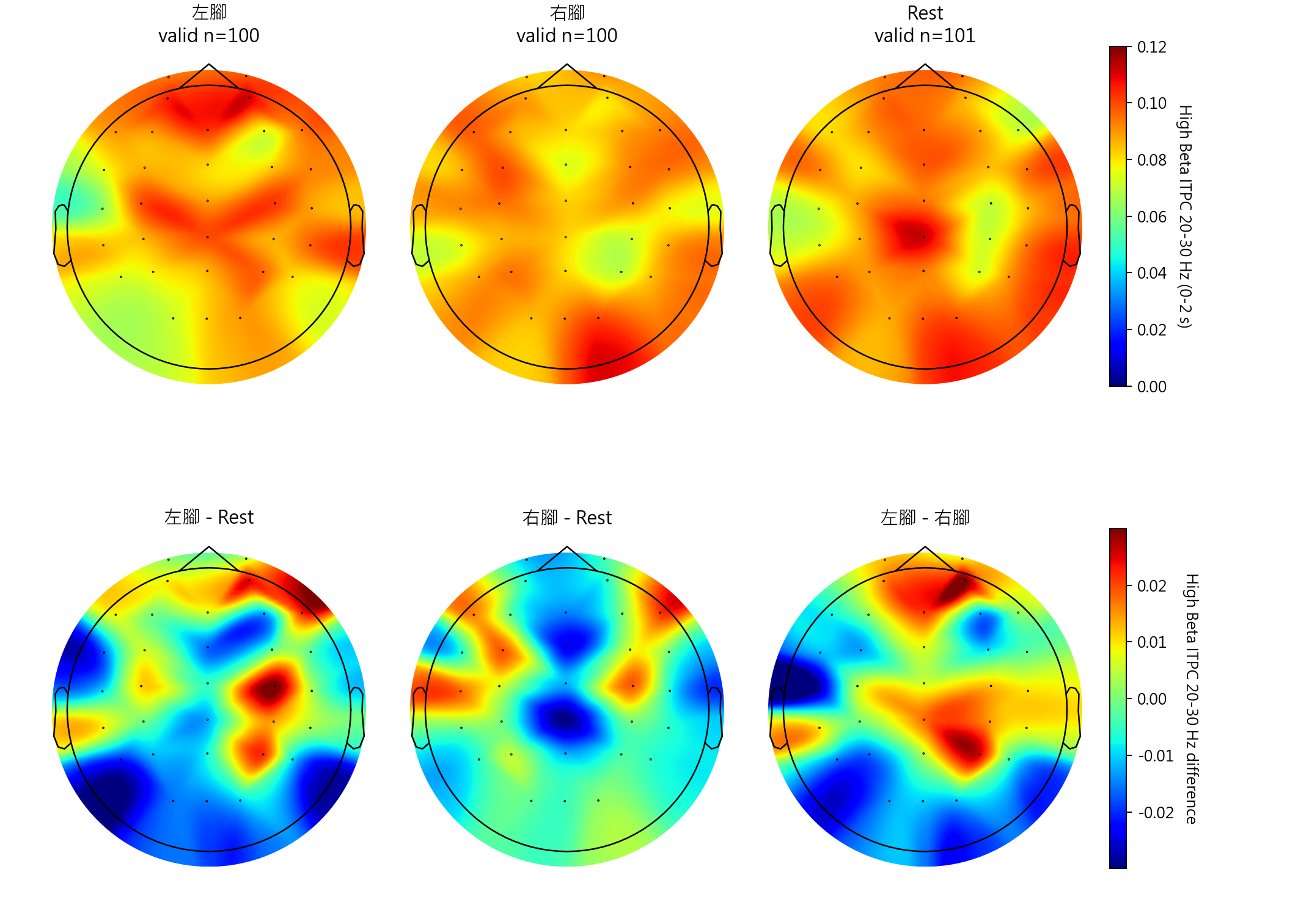

sub10 High Beta ITPC 20-30 Hz topomaps

sub11

sub11 - 25y female (游郁慈)

有效 trial / 全部 trial：左腳: 100/100 / 右腳: 100/100 / Rest: 100/100

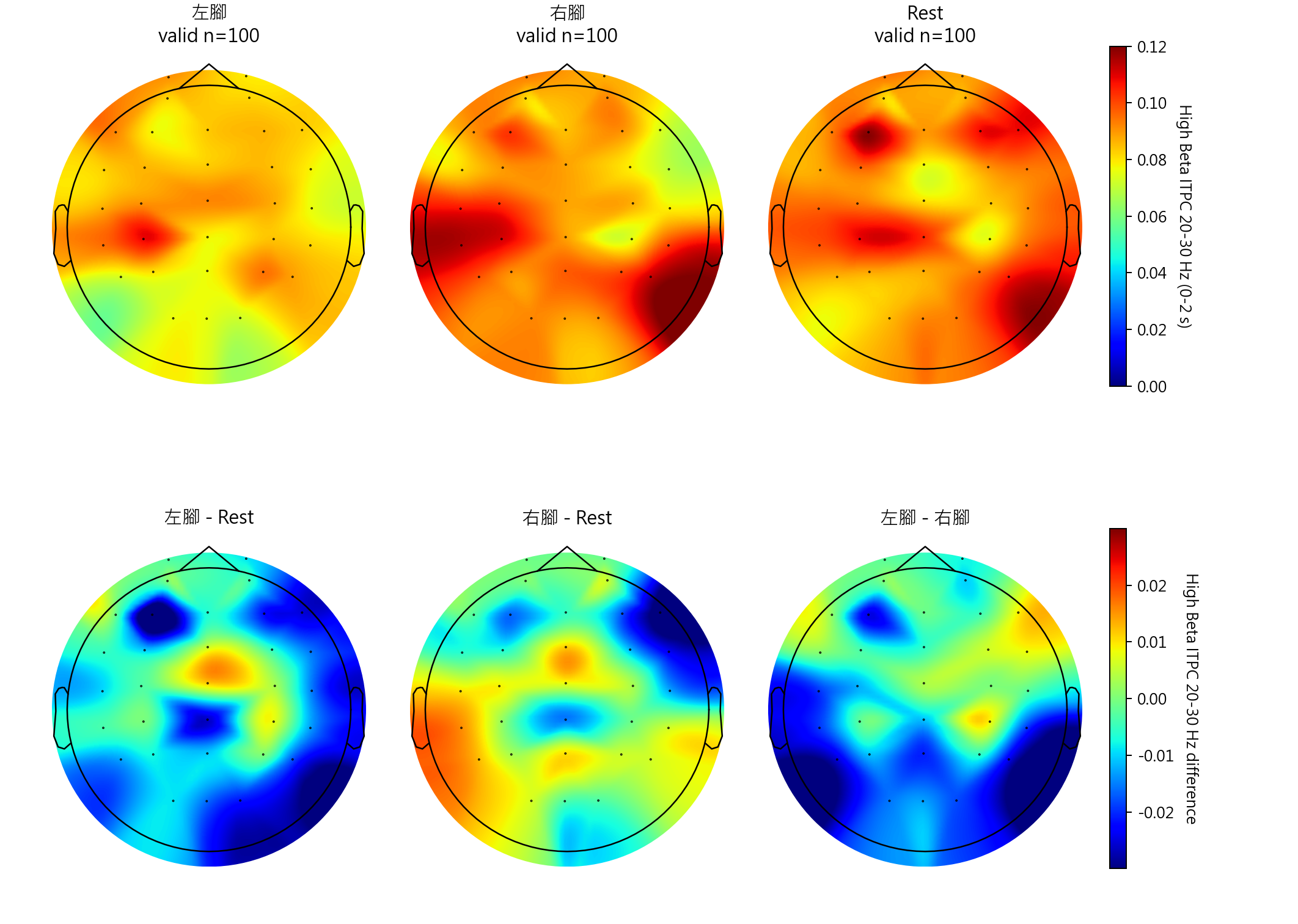

sub11 High Beta ITPC 20-30 Hz topomaps

sub12

sub12 - 24y male (林子競)

有效 trial / 全部 trial：左腳: 100/100 / 右腳: 101/101 / Rest: 98/100

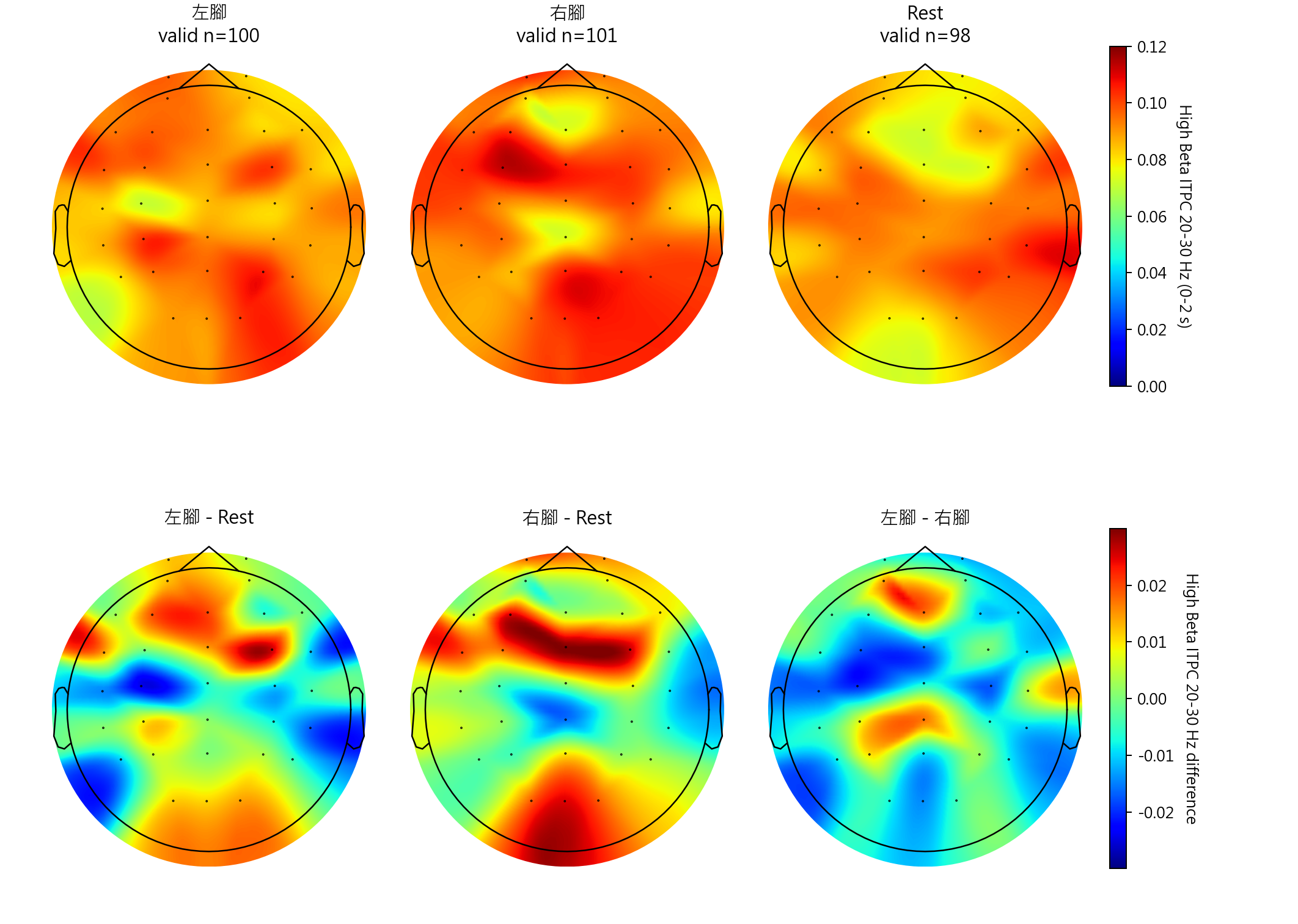

sub12 High Beta ITPC 20-30 Hz topomaps

sub13

sub13 - 22y female (陳姿穎)

有效 trial / 全部 trial：左腳: 100/100 / 右腳: 99/100 / Rest: 100/100

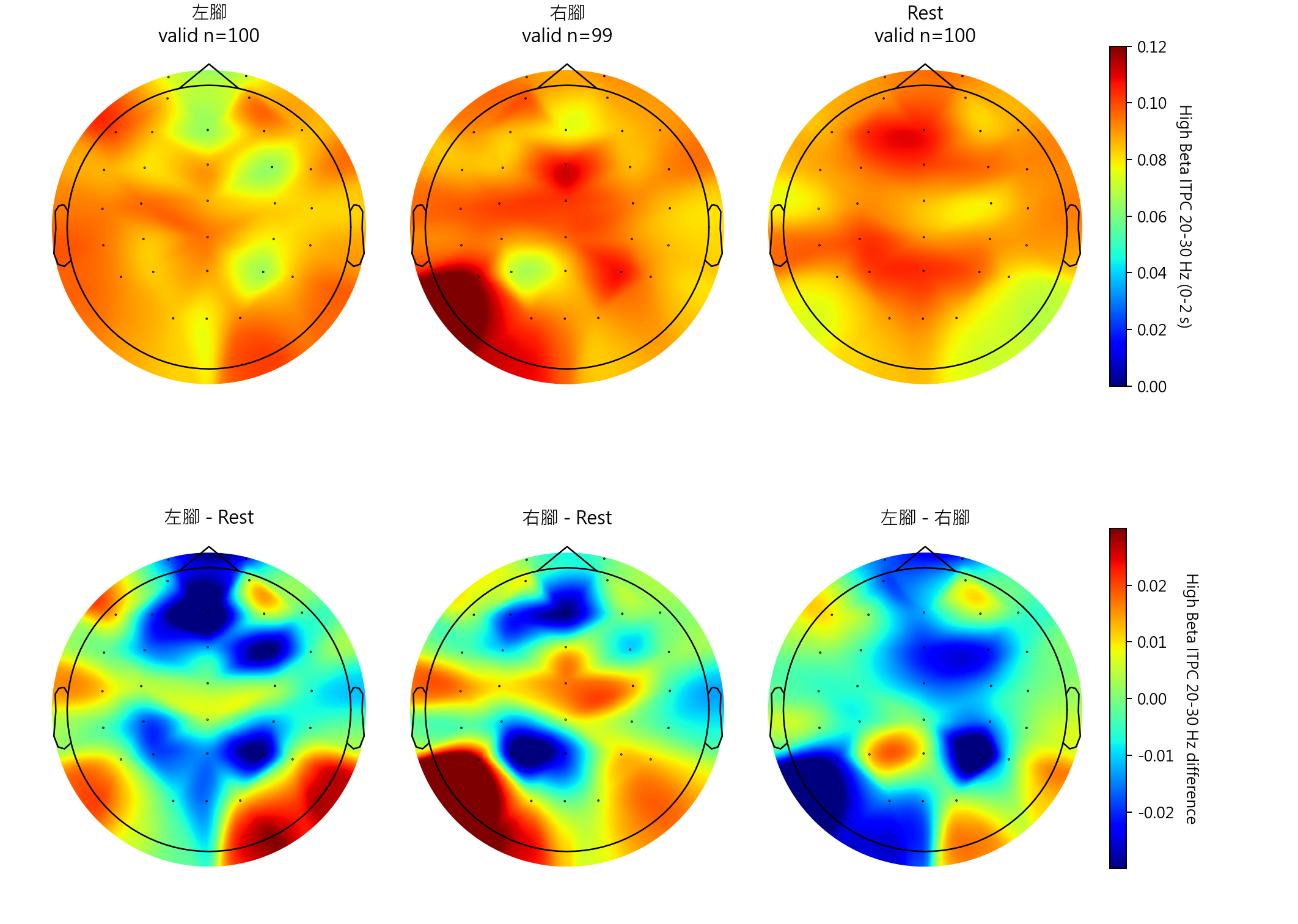

sub13 High Beta ITPC 20-30 Hz topomaps

sub14

sub14 - 20y female (鍾沂蓁)

有效 trial / 全部 trial：左腳: 100/100 / 右腳: 100/100 / Rest: 101/101

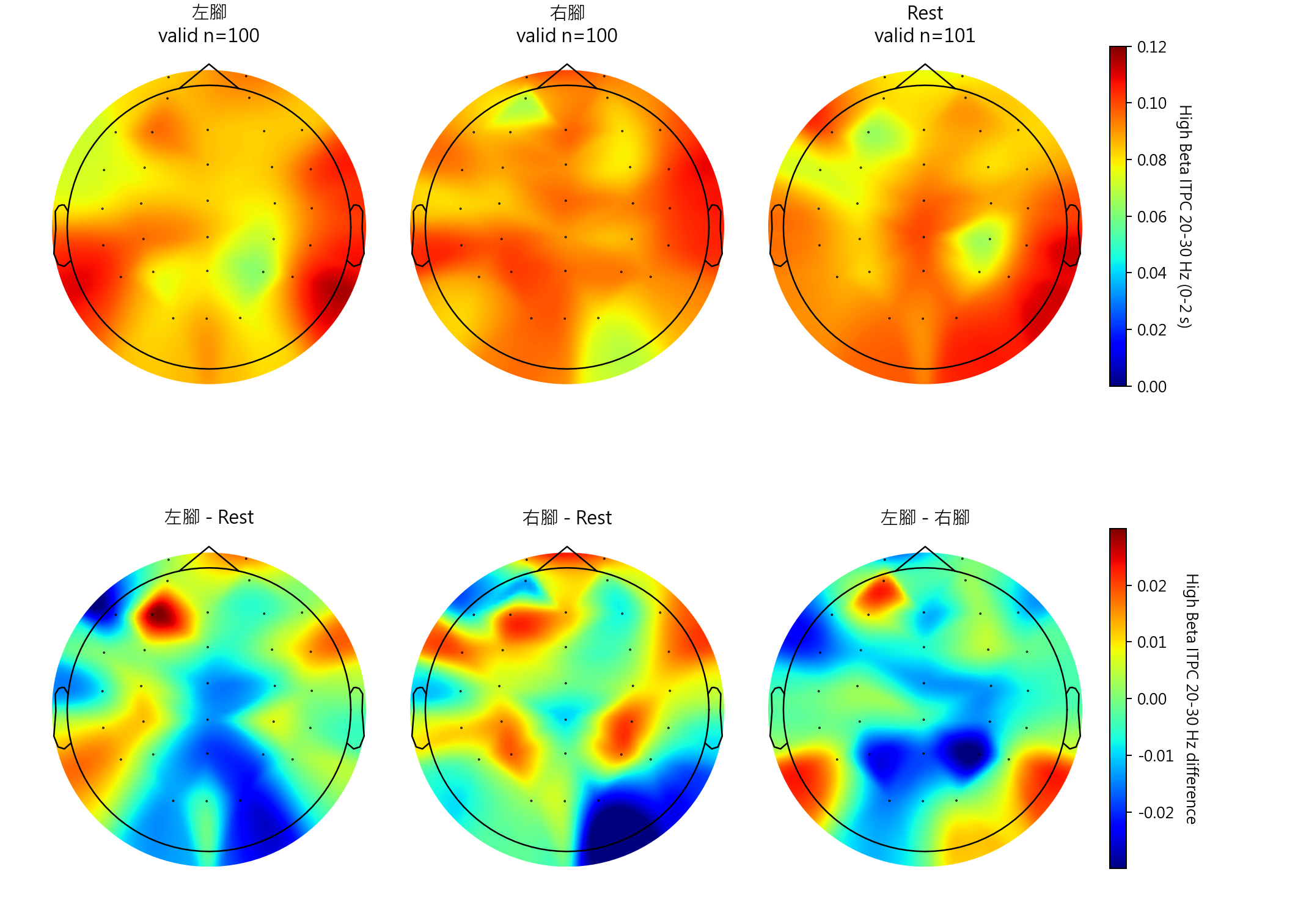

sub14 High Beta ITPC 20-30 Hz topomaps

sub15

sub15 - 20y female (呂佳蓁)

有效 trial / 全部 trial：左腳: 100/100 / 右腳: 100/101 / Rest: 100/100

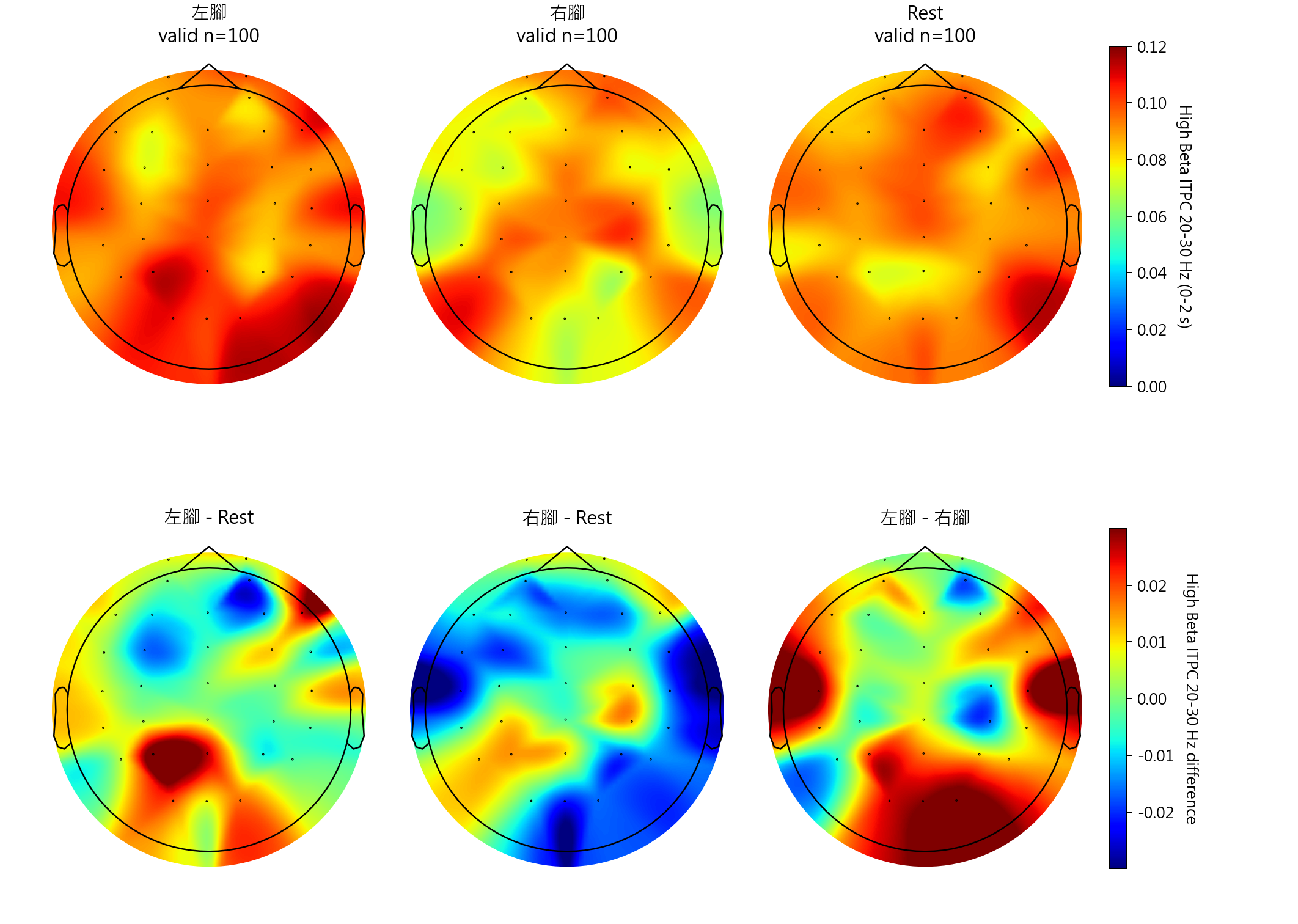

sub15 High Beta ITPC 20-30 Hz topomaps

sub2

sub2 - 29y male (Sean)

有效 trial / 全部 trial：左腳: 102/102 / 右腳: 100/101 / Rest: 100/100

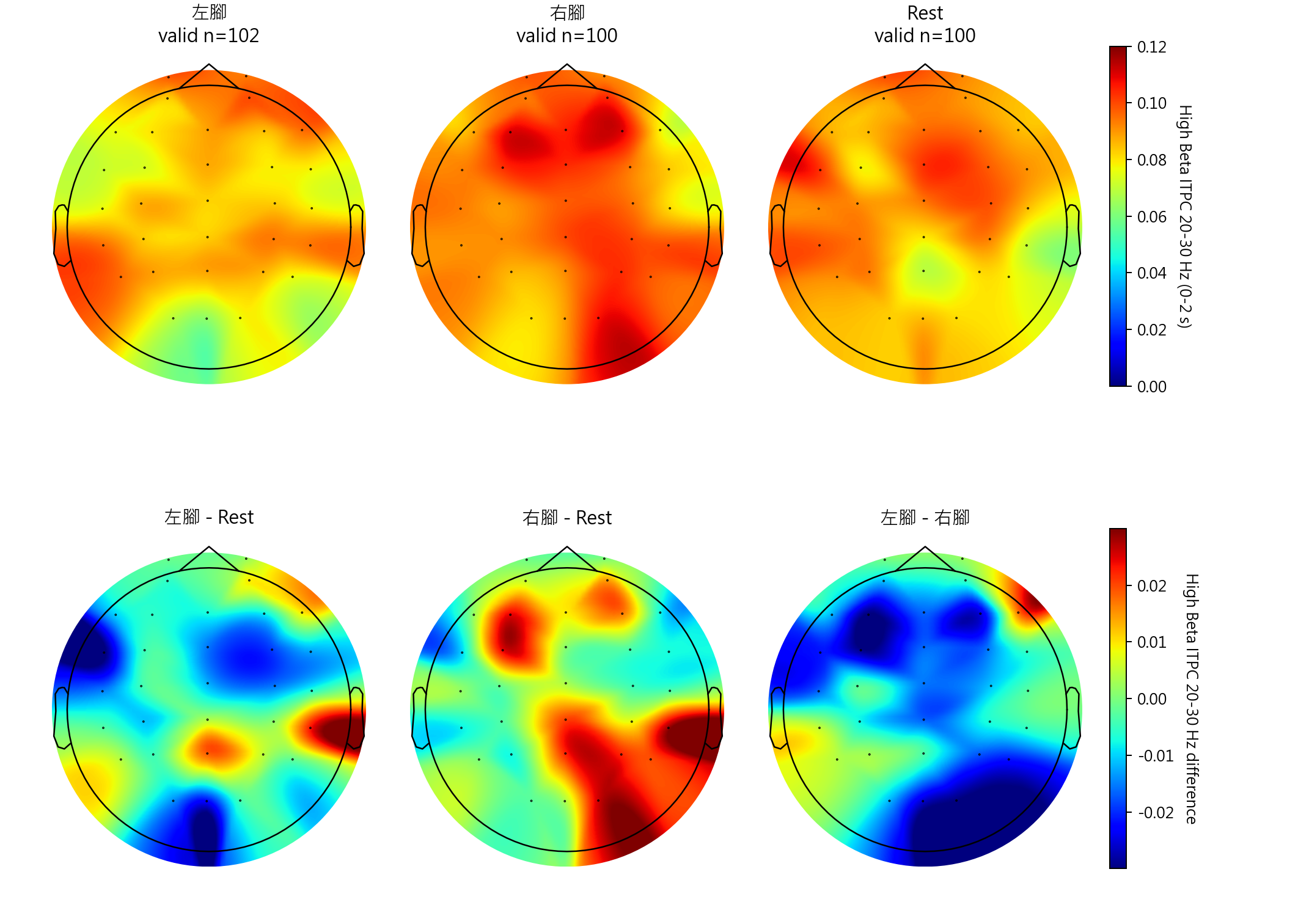

sub2 High Beta ITPC 20-30 Hz topomaps

sub3

sub3 - 29y female (Janice)

有效 trial / 全部 trial：左腳: 100/100 / 右腳: 100/100 / Rest: 100/100

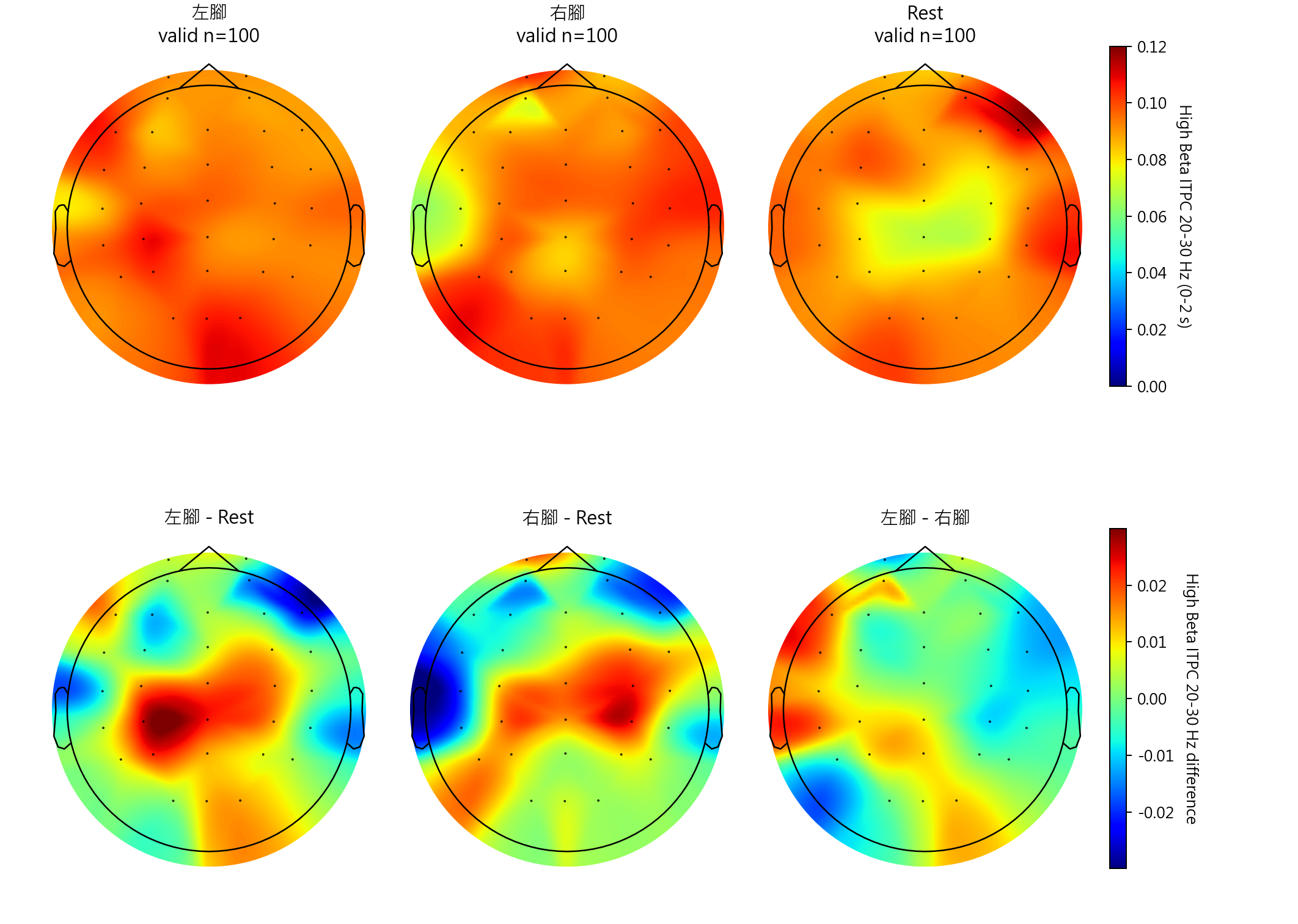

sub3 High Beta ITPC 20-30 Hz topomaps

sub9

sub9 - 23y female (潘俐伃)

有效 trial / 全部 trial：左腳: 100/100 / 右腳: 100/101 / Rest: 100/100

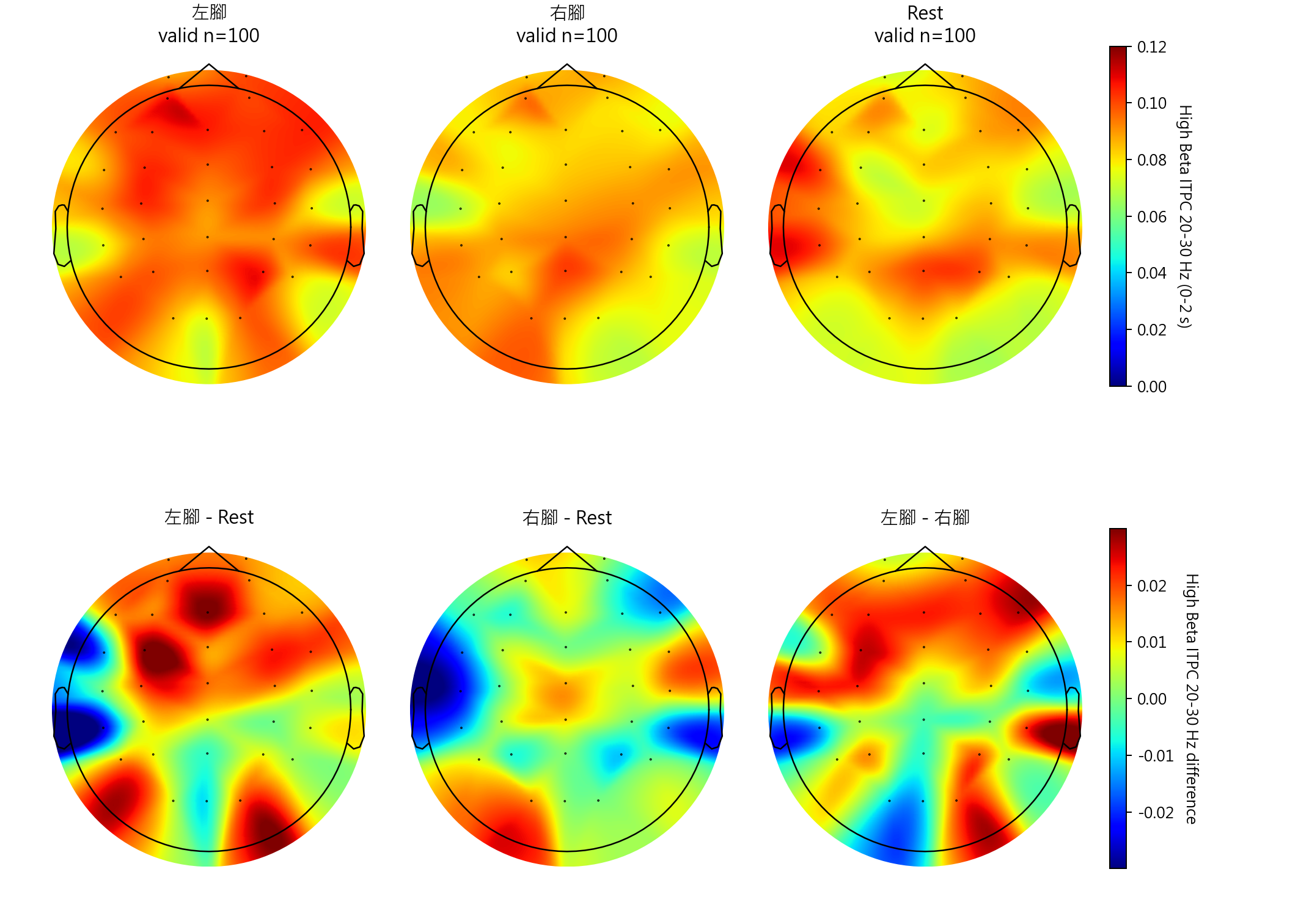

sub9 High Beta ITPC 20-30 Hz topomaps
