8 通道模型歸因、TemporalSpectralNet 與 EA-VICReg SSL

正常人 left/right 個人化五折分類,分階段漏斗與 matched comparisons

固定輸入:Fp1/Fp2/Fz/C3/C4/Pz/O1/O2、200 Hz、事件後 0–2 秒;baseline -0.5–0 秒只供頻帶 task/baseline dB change。正式候選不使用 ASR/ICA,EA 每 fold 僅由 train/calibration trials 估計。

選擇紀錄

stage experiment subjects accuracy
attribution attr_legacy_20_eegnet_s20260713 10 59.25% ± 13.23%
attribution attr_legacy_20_eegnet_s20260714 10 59.00% ± 9.14%
attribution attr_legacy_20_eegnet_s20260715 10 57.75% ± 10.50%
attribution attr_legacy_20_eegnet_s20260716 10 57.75% ± 7.31%
attribution attr_legacy_20_eegnet_s20260717 10 53.75% ± 8.76%
attribution attr_legacy_all_eegnet 10 65.86% ± 10.83%
attribution attr_raw_20_eegnet_s20260713 10 57.75% ± 10.77%
attribution attr_raw_20_eegnet_s20260714 10 57.50% ± 12.36%
attribution attr_raw_20_eegnet_s20260715 10 55.50% ± 6.10%
attribution attr_raw_20_eegnet_s20260716 10 52.50% ± 7.55%
attribution attr_raw_20_eegnet_s20260717 10 53.75% ± 5.80%
attribution attr_raw_all_eegnet 10 66.95% ± 12.48%
attribution attr_raw_all_mibiot 10 58.50% ± 10.50%
attribution attr_raw_all_shallow 10 72.57% ± 16.35%
ea_ssl final_scratch 10 69.58% ± 15.32%
ea_ssl final_scratch_ea 10 71.67% ± 15.53%
ea_ssl final_ssl 10 57.28% ± 8.49%
ea_ssl final_ssl_ea 10 62.32% ± 10.76%
preprocessing_filter filter_zero_1_40 10 72.53% ± 17.45%
preprocessing_filter filter_zero_8_30 10 58.18% ± 8.03%
preprocessing_normalization norm_global 10 71.47% ± 16.60%
preprocessing_normalization norm_p95 10 72.82% ± 18.00%
preprocessing_normalization norm_per_channel 10 71.09% ± 18.21%
preprocessing_phase phase_causal_1_40 10 72.78% ± 15.98%
preprocessing_phase phase_zero_1_40 10 71.82% ± 16.16%
temporal_spectral ts_fusion 10 69.41% ± 16.35%
temporal_spectral ts_spectral 10 52.36% ± 4.15%
temporal_spectral ts_temporal 10 68.10% ± 15.92%
{
  "stage1": {
    "winner": "attr_raw_all_shallow",
    "model": "shallow"
  },
  "stage2_normalization": {
    "winner": "norm_p95",
    "normalization": "p95"
  },
  "stage2_filter": {
    "winner": "filter_zero_1_40",
    "filter": "1_40"
  },
  "stage2_phase": {
    "winner": "phase_causal_1_40",
    "phase": "causal",
    "data_mode": "raw_causal_1_40"
  },
  "stage3": {
    "winner": "ts_fusion",
    "model": "fusion"
  },
  "stage4": {
    "initial_seed_best_two": [
      "final_scratch_ea",
      "final_scratch"
    ]
  }
}

一、公平歸因

先比較相同 folds、增強與 normalization 的 EEGNet、ShallowConvNet、MI-BIOT,再用五組固定 20+20 抽樣 seed 量化歷史結果受抽樣運氣影響的程度。

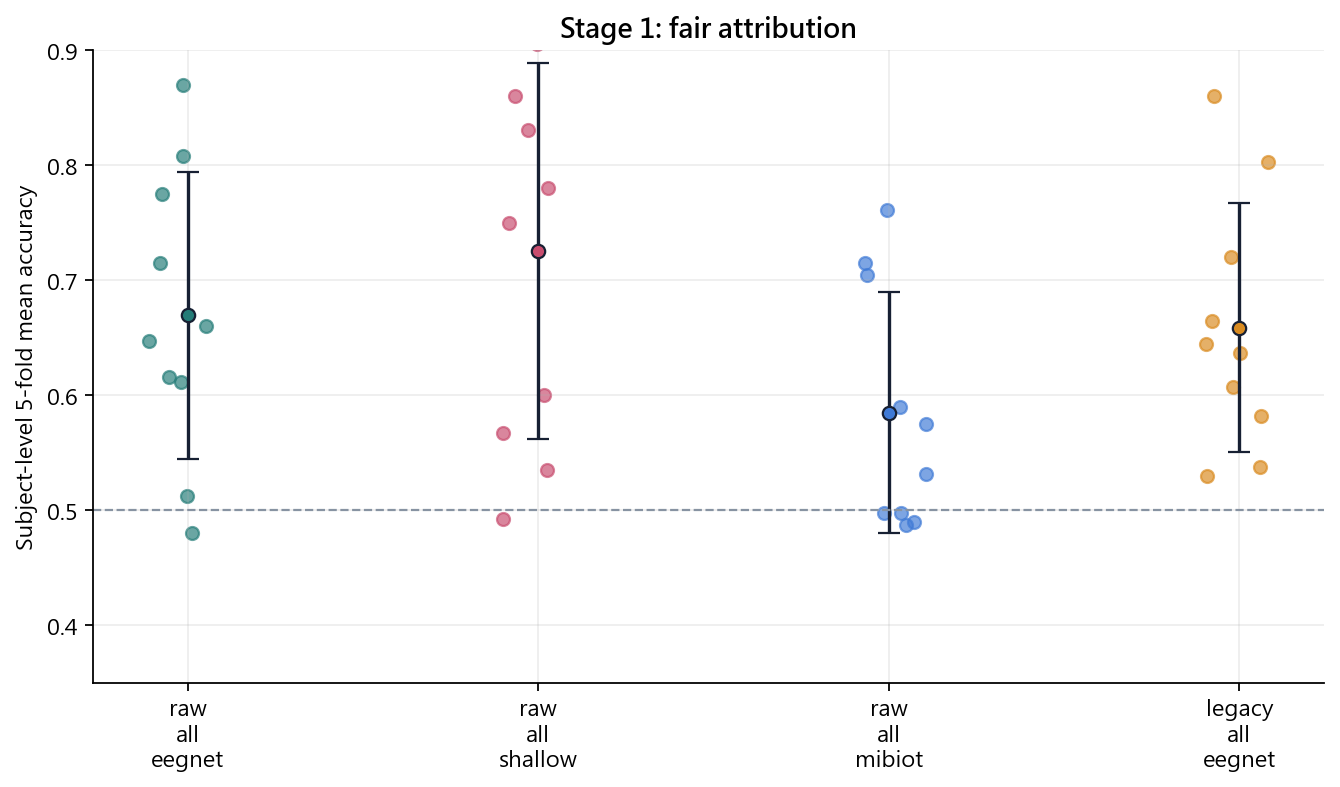

AttributionSubsampling

二、前處理消融

依序選 normalization、MI 常用的 8–30 Hz 候選與 1–40 Hz,再比較 zero-phase 與可部署的 causal SOS。每一步只帶勝出設定往下,避免用同一批資料搜尋大型全因子組合。

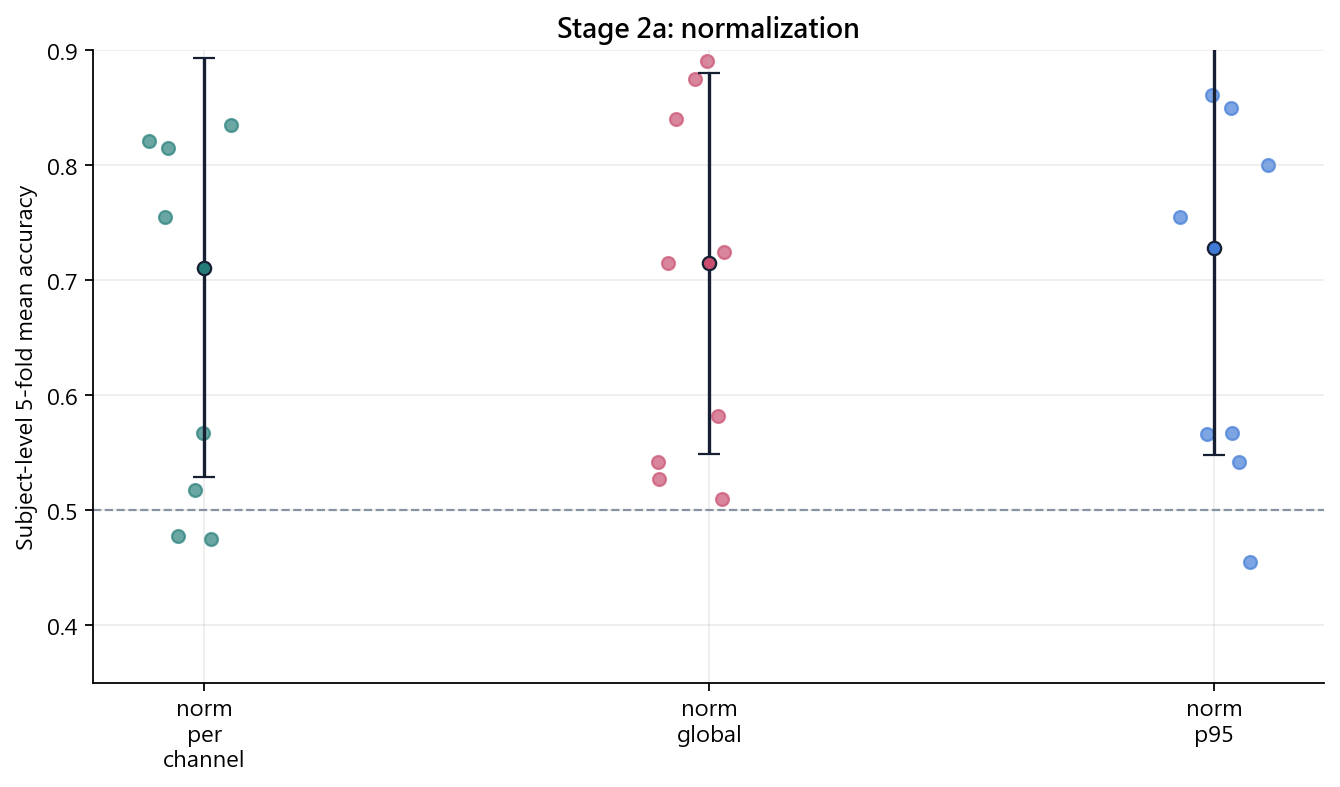

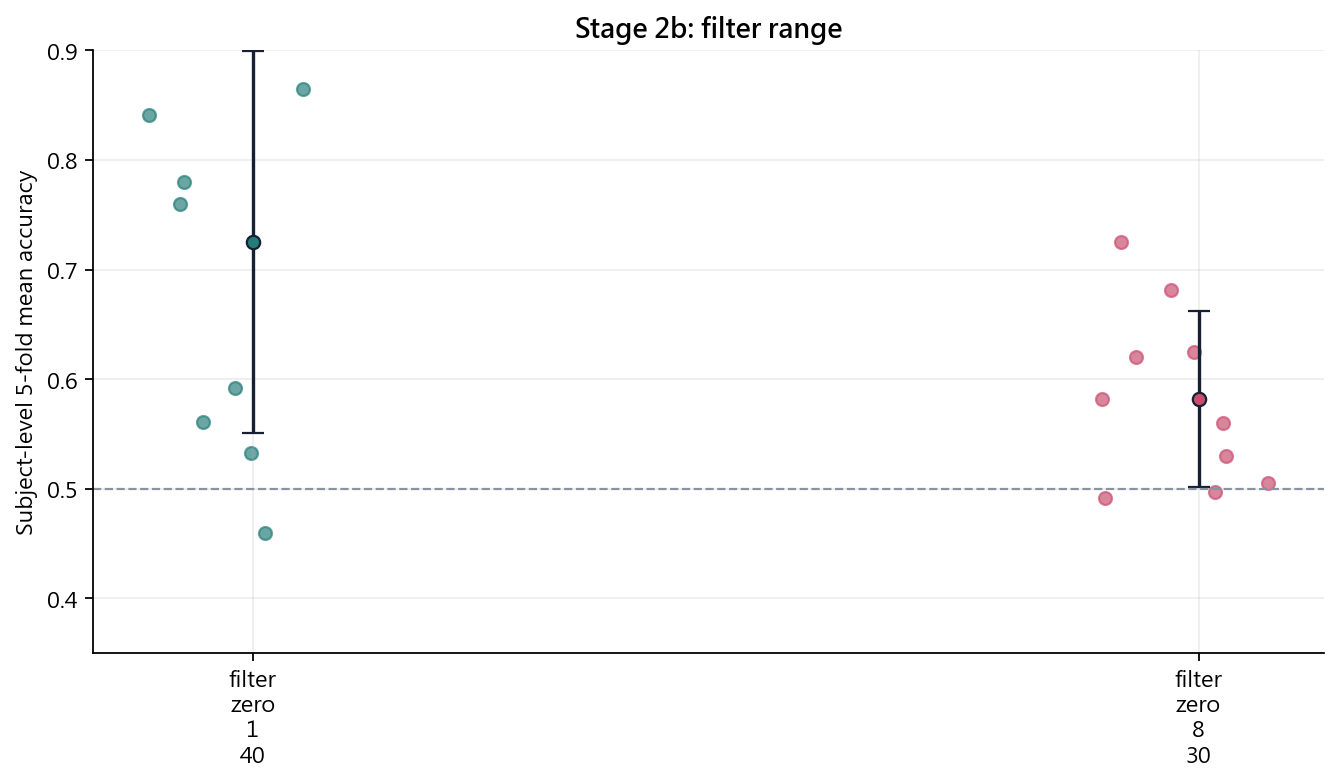

NormalizationFilterPhase

三、TemporalSpectralNet

Temporal branch 保留多尺度瞬時波形;spectral branch 使用 Mu、low beta、high beta 的 task log-power、baseline dB change 與 C3/C4 側化;fusion 檢查兩者是否互補。

Branches

四、EA 與 VICReg SSL

Euclidean Alignment 依 subject/session 平均 covariance 對齊;正式受試者每 fold 僅由 train/calibration trials 估計矩陣。30 位未使用受試者做 subject-balanced VICReg,並以 gradient reversal 降低受試者身分資訊。Scratch、Scratch+EA、SSL、SSL+EA 使用相同 encoder、folds 與微調設定。SSL 預訓練因 GB10/PyTorch 2.13 alpha 的 BF16/FP16 kernel 不穩定改用 FP32;下游為 BF16 autocast,FFT 固定 FP32。

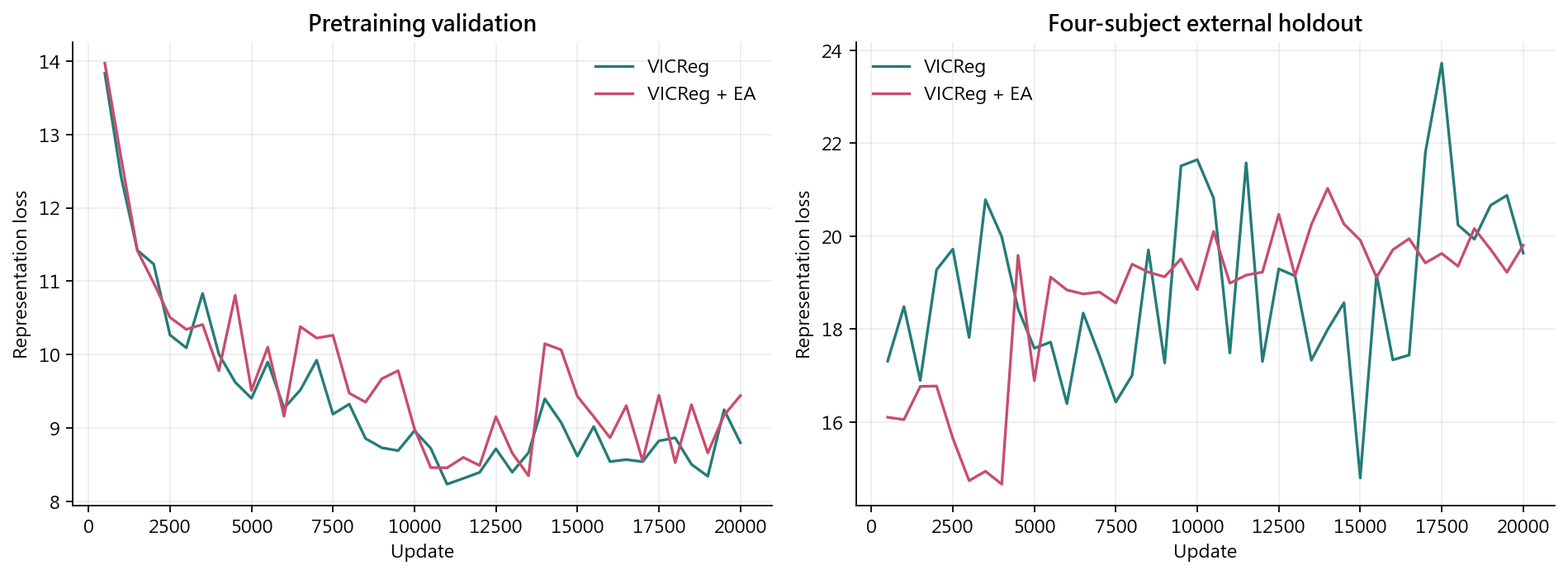

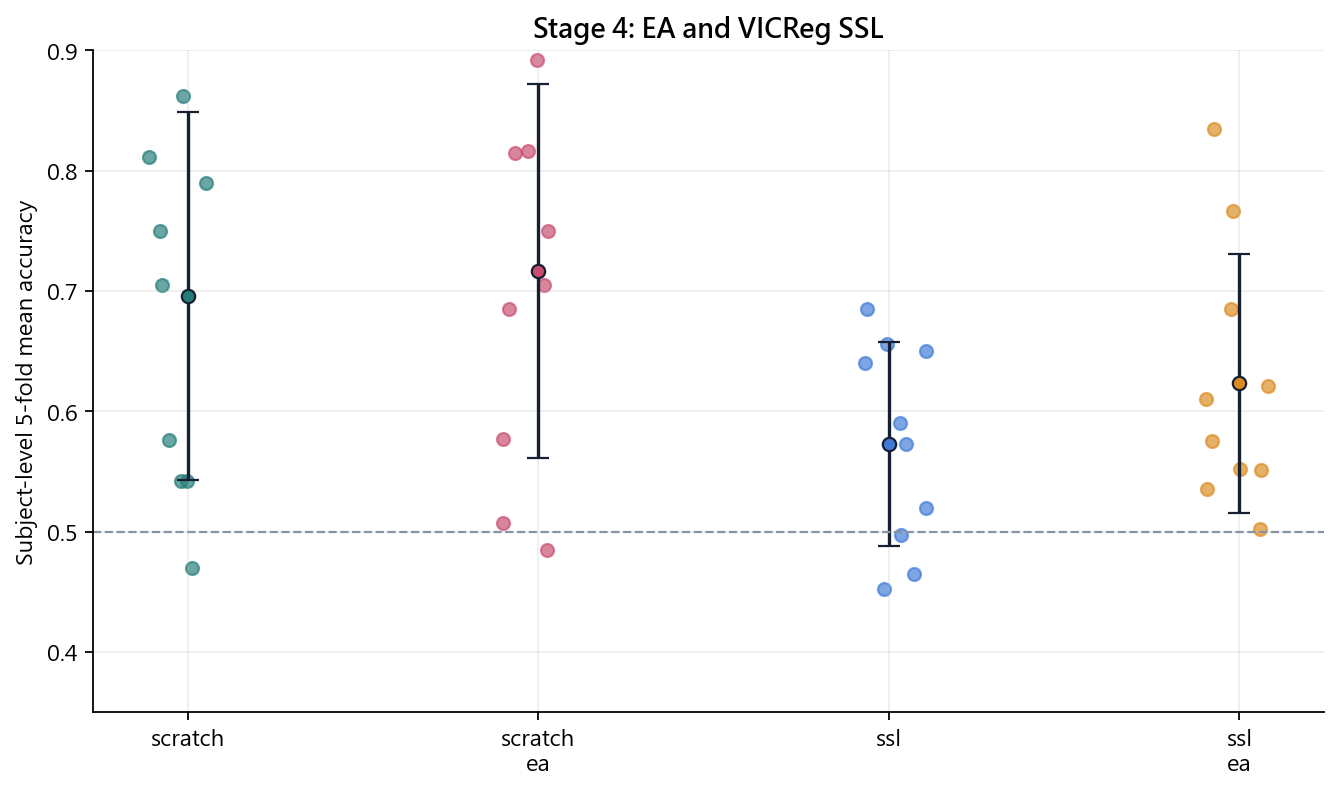

PretrainingEA SSL
stage experiment subjects accuracy
ea_ssl final_scratch 10 69.58% ± 15.32%
ea_ssl final_scratch_ea 10 71.67% ± 15.53%
ea_ssl final_ssl 10 57.28% ± 8.49%
ea_ssl final_ssl_ea 10 62.32% ± 10.76%

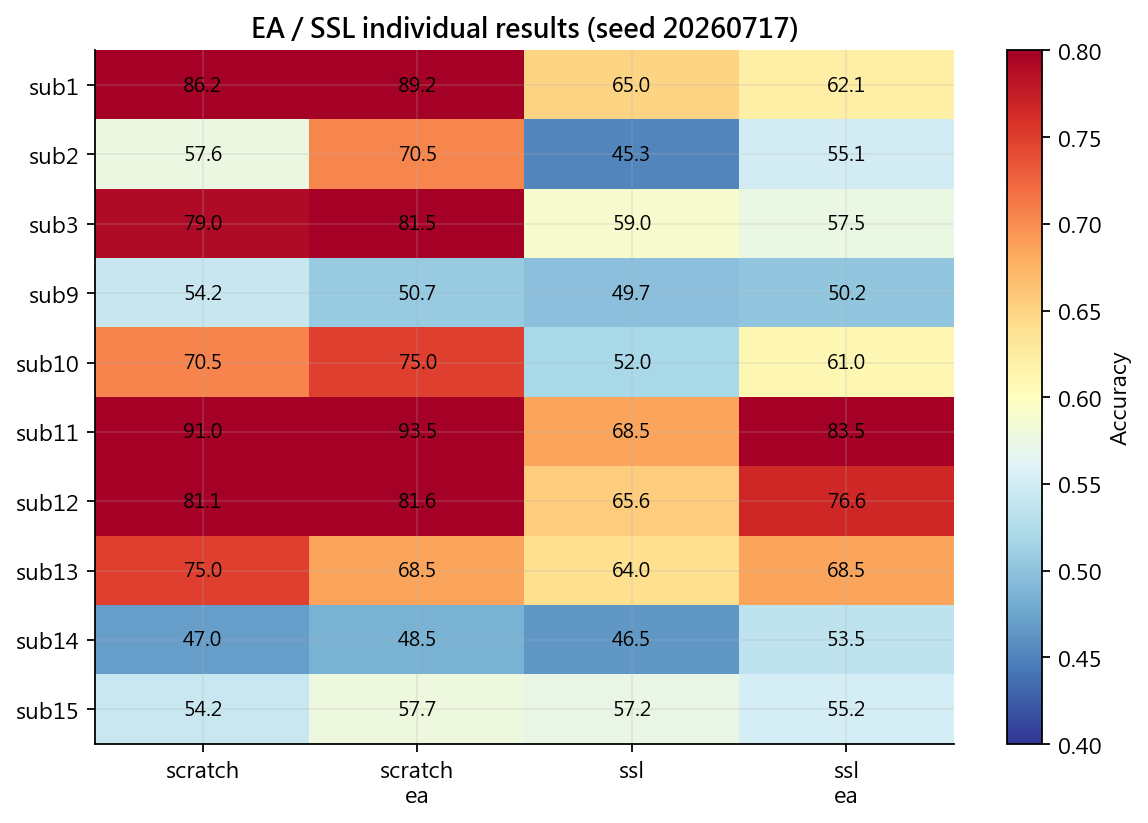

SubjectsSeed stability

Paired statistics

comparison mode_a mode_b n_subjects mean_delta_pp bootstrap_ci_low_pp bootstrap_ci_high_pp wilcoxon_p_raw a_better_subjects wilcoxon_p_holm
Scratch + EA vs Scratch final_scratch_ea final_scratch 10 2.09 -0.84 5.12 0.2324 8 0.2324
SSL vs Scratch final_ssl final_scratch 10 -12.30 -17.30 -6.87 0.0059 1 0.0293
SSL + EA vs Scratch + EA final_ssl_ea final_scratch_ea 10 -9.35 -15.74 -3.29 0.0243 1 0.0971
SSL + EA vs Scratch final_ssl_ea final_scratch 10 -7.25 -13.05 -2.10 0.0273 2 0.0971
Scratch + EA vs Scratch (3-seed aggregate) final_scratch_ea_multiseed final_scratch_multiseed 10 3.50 0.73 6.40 0.0488 8 0.0977

結果判斷

三 seed 平均 Scratch 為 68.91%,Scratch + EA 為 72.41%;配對差異 +3.50 pp,95% CI [0.73, 6.40],改善受試者 8/10,達到預先設定的 +3 pp、CI 下界大於 0、7/10 同方向標準。Wilcoxon raw p=0.0488,Holm 校正 p=0.0977。
解讀界線:三 seed EA 效果達到預設 effect-size/CI/方向一致性門檻,但五個 planned comparisons 經 Holm 校正後未達 0.05,應視為有支持的探索性結果,而非已完成獨立 confirmatory validation。62.75% NewNetV3 為歷史手動結果,原始程式不存在,因此不對它做顯著性推論。ASR+ICA 只用來回答歸因問題,不列入 online 候選。所有負結果均保留。

輸出檔案

fold_results.csvgroup_summary.csvpaired_comparisons.csvpretrain_history_ea.csvpretrain_history_noea.csvrun_config.jsonrun_config_effective.jsonseed_stability.csvselection.jsonsubject_summary.csv
