Signed-log 一階微分:指定受試者 C3/C4 左右腳波形

依指定順序排列;每位受試者一張 2×2 組圖。

轉換與呈現

1–40 Hz zero-phase SOS IIR → 200 Hz → d[t]=x[t]-x[t-1] → sign(d)×log1p(|d|) → trial/channel Z-score。每條實線為該受試者的 trial 平均,陰影為 trial 間 95% CI;所有受試者與 panel 使用相同 y 軸。

subject_waveforms.csv 提供每個時間點的 mean、STD 與 95% CI。

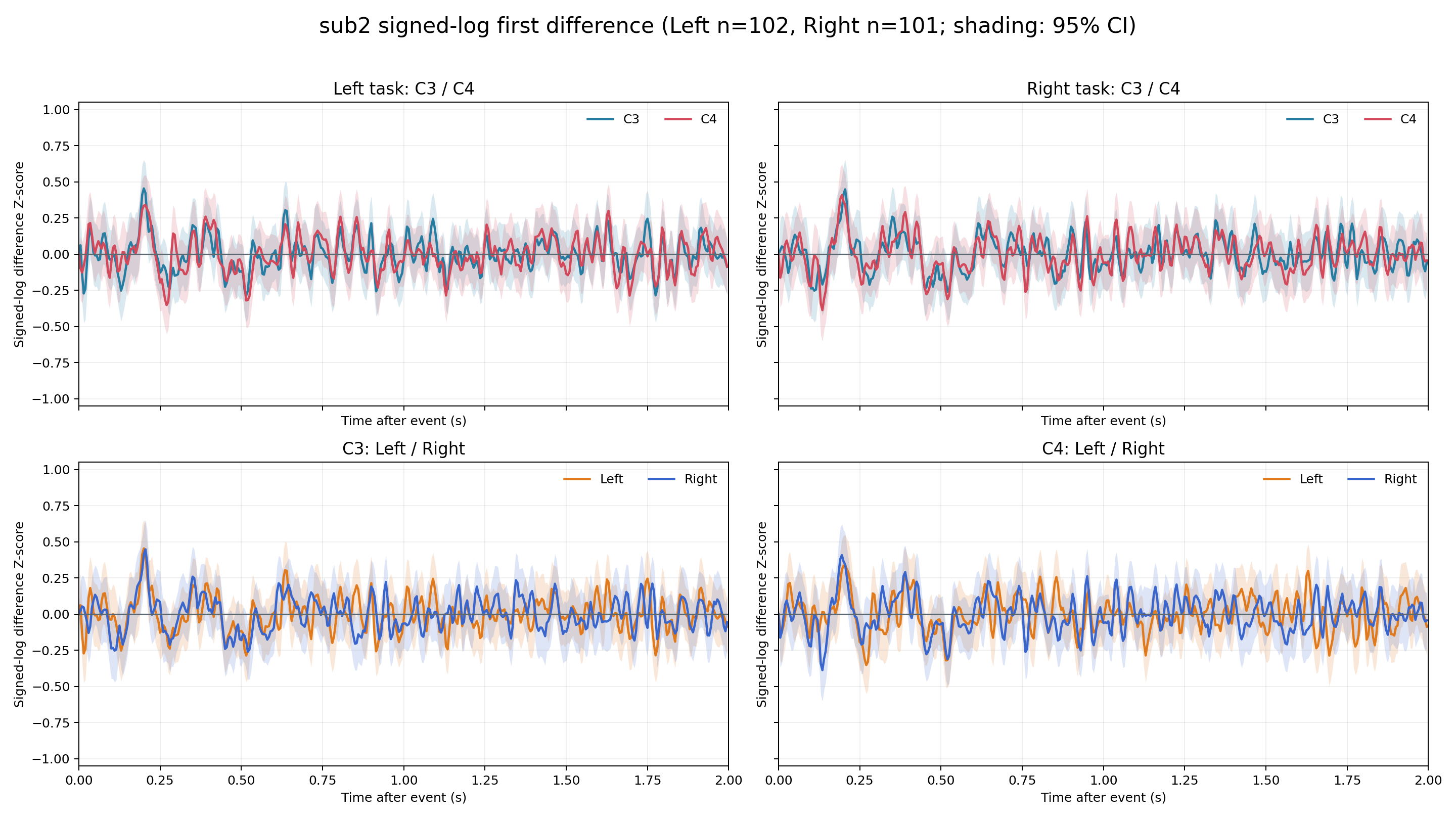

1. sub2

Left n=102;Right n=101

sub2 四張疊圖

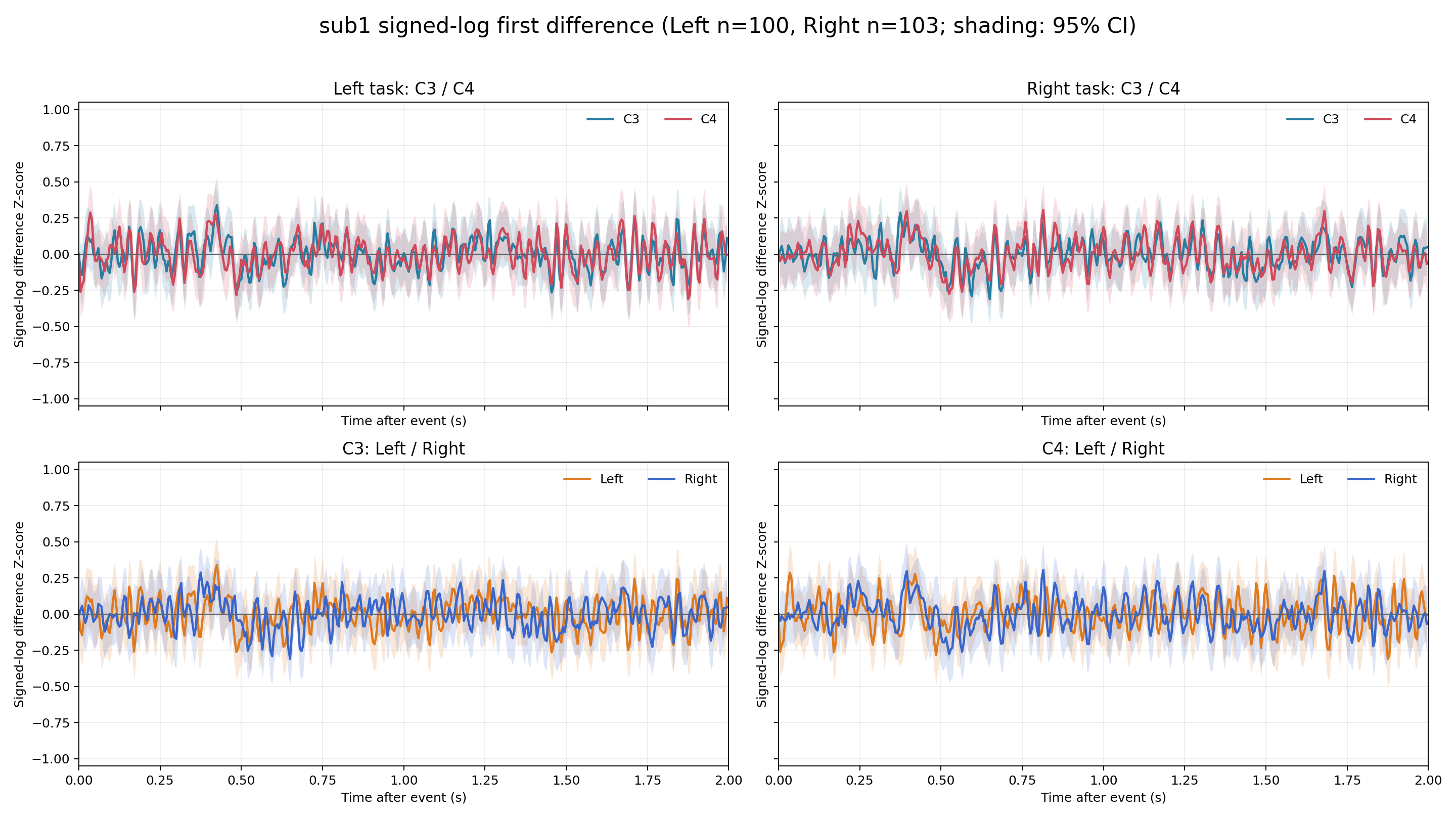

2. sub1

Left n=100;Right n=103

sub1 四張疊圖

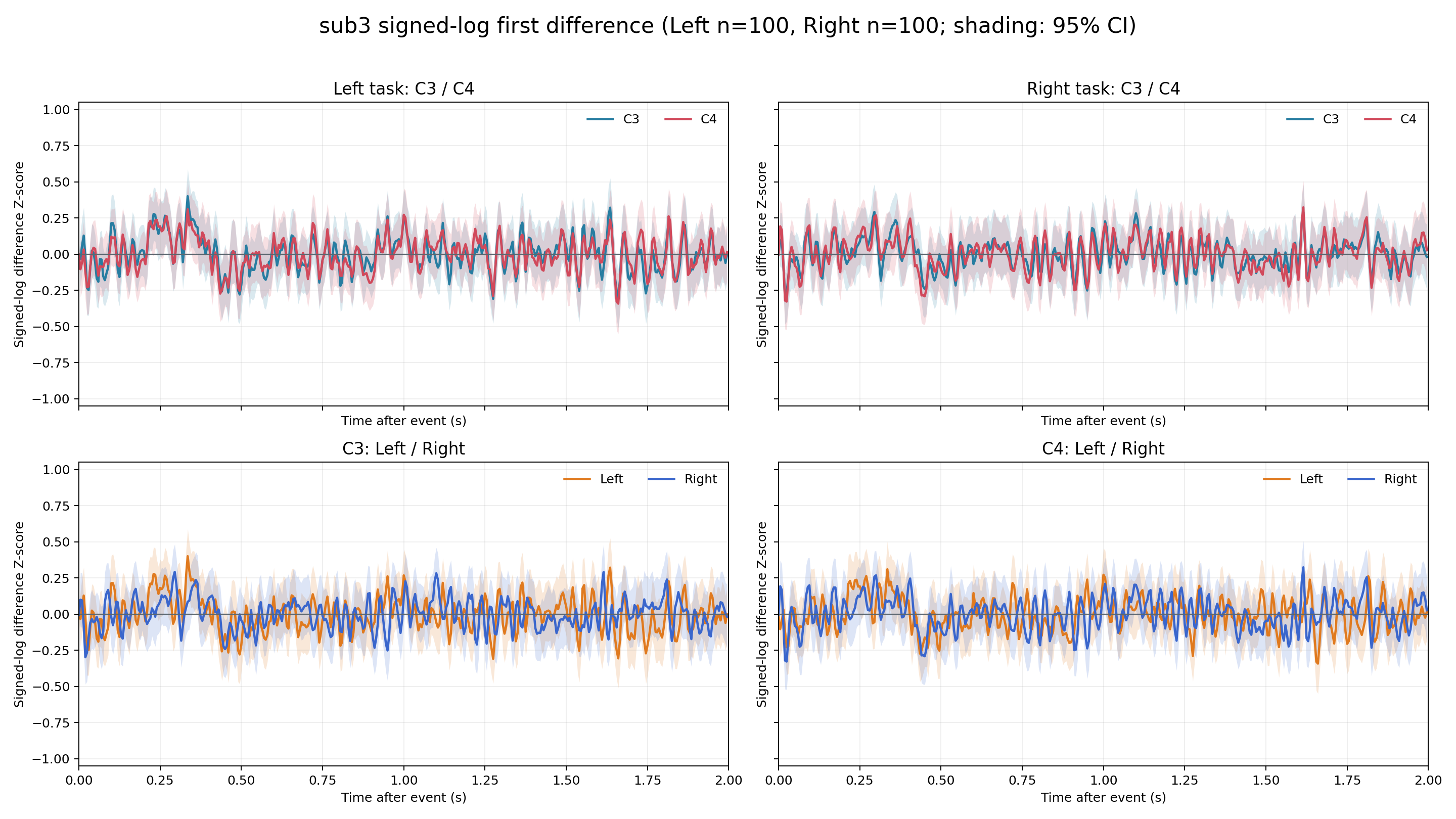

3. sub3

Left n=100;Right n=100

sub3 四張疊圖

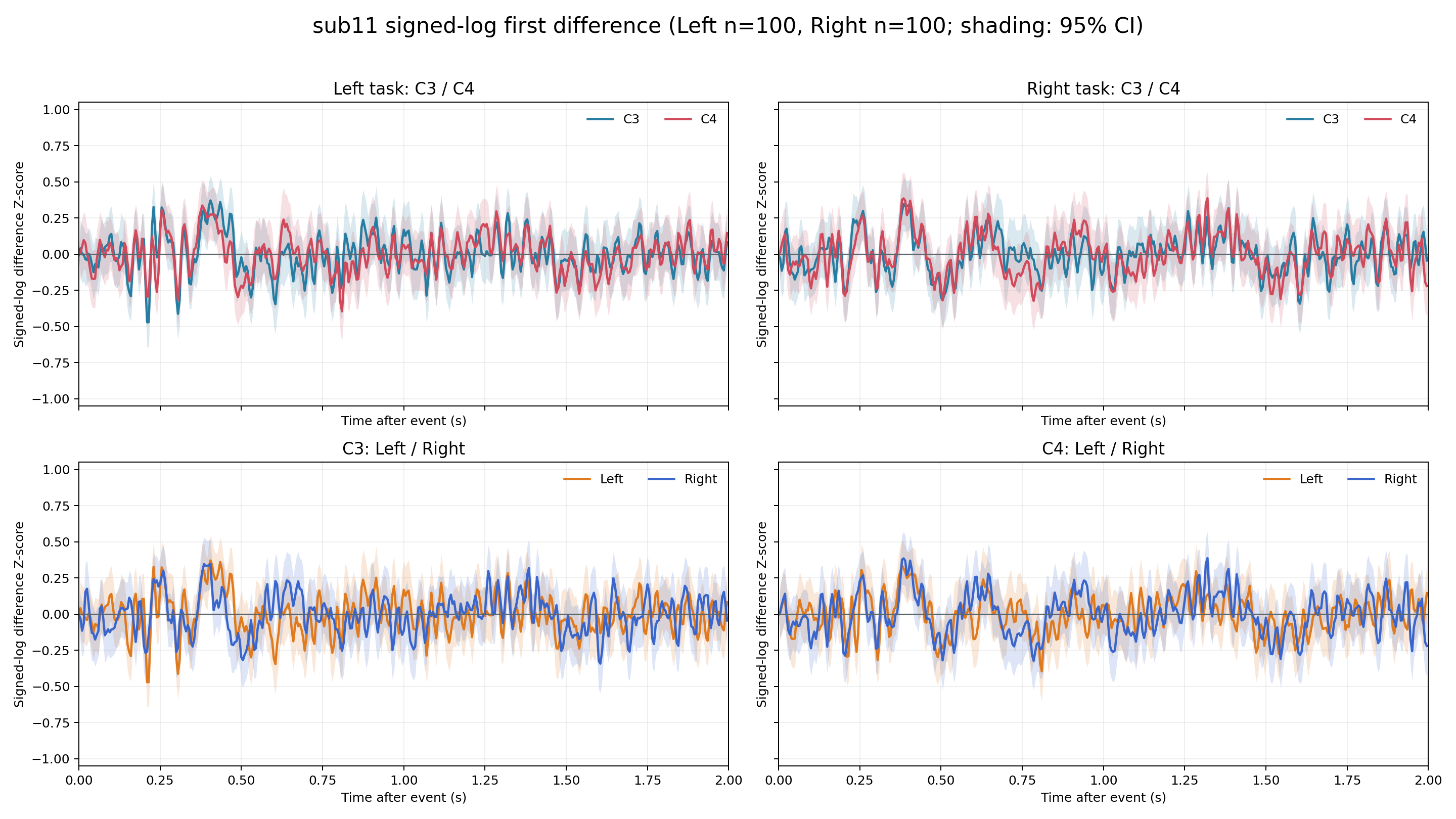

4. sub11

Left n=100;Right n=100

sub11 四張疊圖

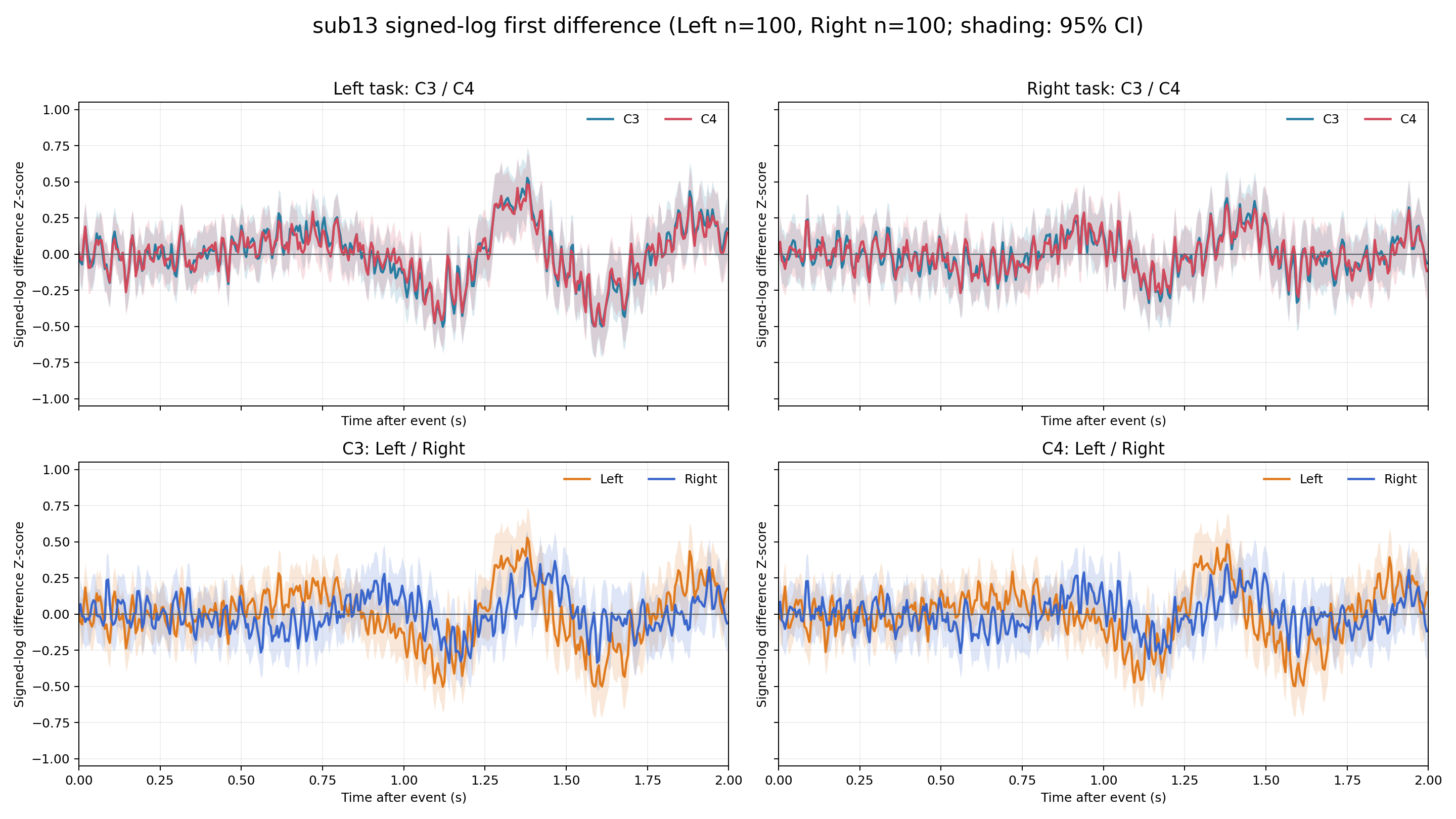

5. sub13

Left n=100;Right n=100

sub13 四張疊圖

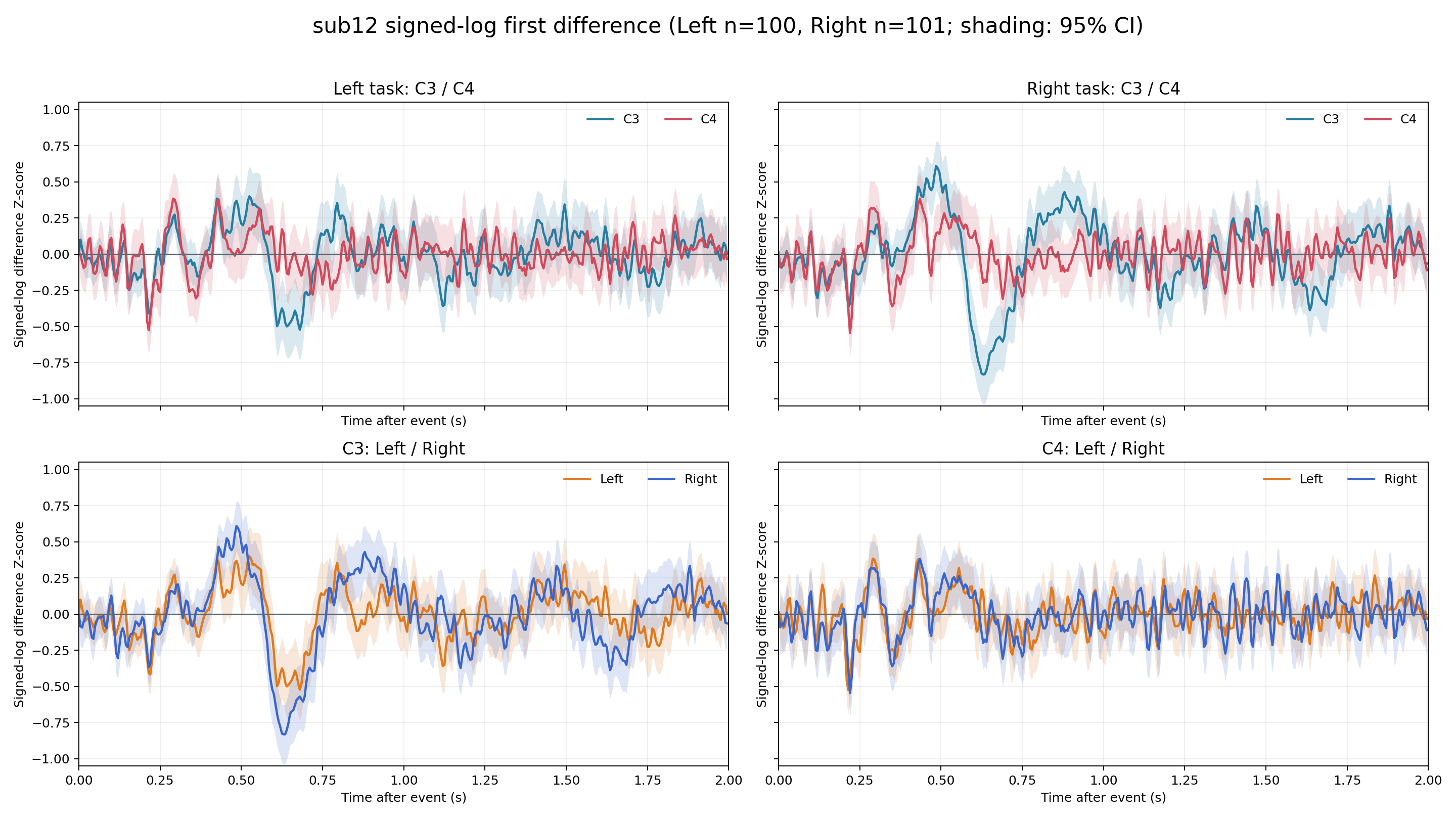

6. sub12

Left n=100;Right n=101

sub12 四張疊圖

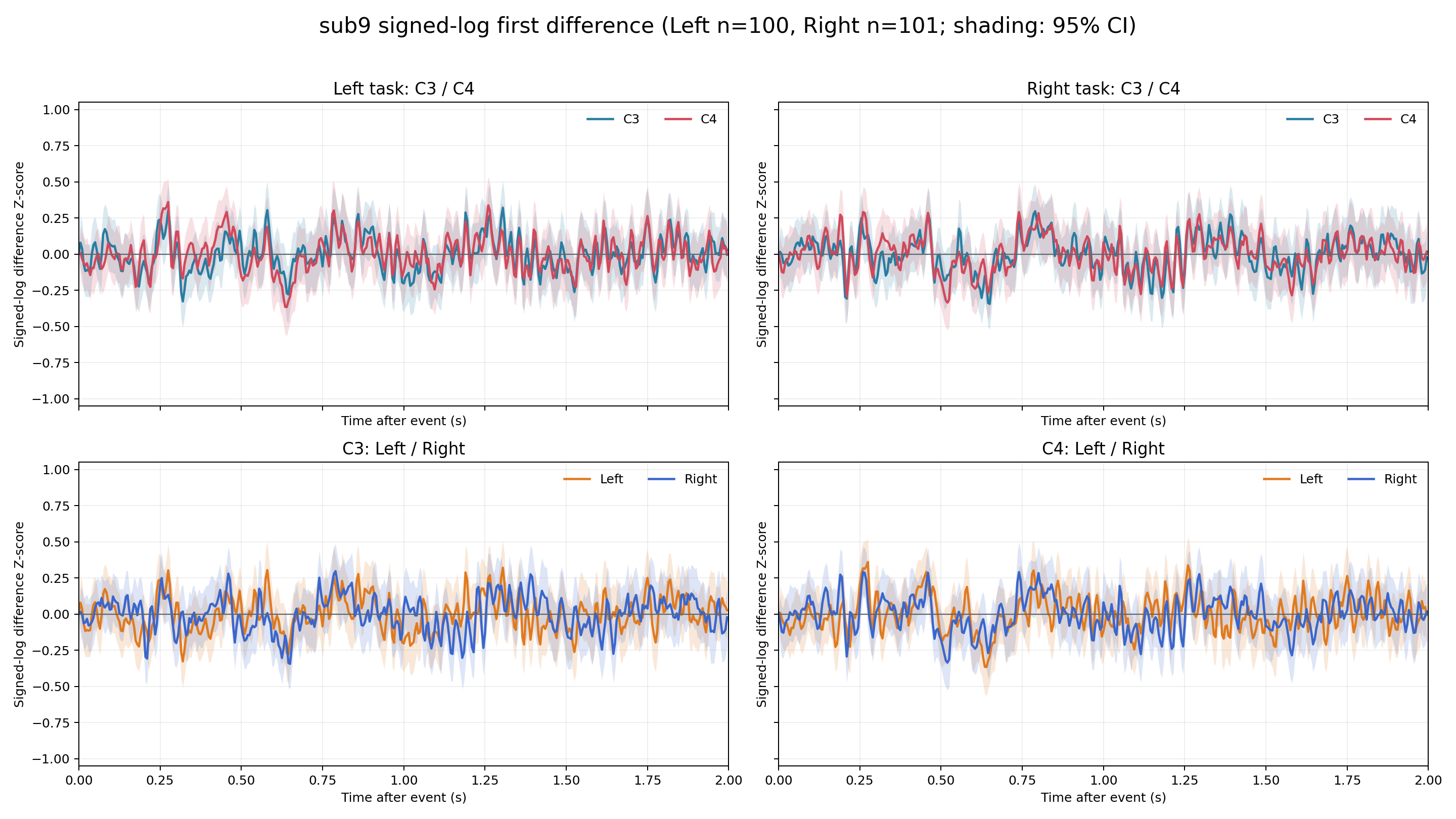

7. sub9

Left n=100;Right n=101

sub9 四張疊圖
